NSN 1650-00-196-9694
Part Details | LINEAR ACTUATING CYLINDER
1650-00-196-9694 A cylinder designed to house a piston and other necessary component parts of a CYLINDER ASSEMBLY, ACTUATING, LINEAR. Do not use if a more specific name applies.
Alternate Parts: 722705001, 7227050-01, 1650-00-196-9694, 00-196-9694, 1650001969694, 001969694
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | MAR 23, 1973 | 00-196-9694 | 22017 ( CYLINDER, ACTUATING, LINEAR ) |
REFERENCE DRAWINGS & PICTURES

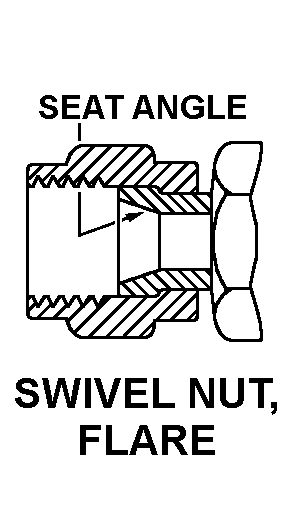

SWIVEL NUT, FLARE
Cross Reference | NSN 1650-00-196-9694
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7227050-01 | 98747 | OGDEN AIR LOGISTICS CENTER |
Technical Data | NSN 1650-00-196-9694
| Characteristic | Specifications |
|---|---|
| BODY MATERIAL | ALUMINUM ALLOY, MIL-A-22771, ALLOY 7075, T73 |
| PORT STYLE | 5 SWIVEL NUT, FLARE |
| FSC APPLICATION DATA | ACFT HYDRAULIC SYSTEM COMPONENTS |
