NSN 1650-00-303-8649
Part Details | DUST AND MOISTURE SEAL BOOT
1650-00-303-8649 A flexible, nonmetallic item designed to prevent entry of dust, moisture and other contaminants into critical areas around shafts, levers, electrical wires and hoses. Sealing may be either static or dynamic. The item may include mounting hardware (support plates, clamps and the like). Excludes BELLOWS, PROTECTION; GROMMET, NONMETALLIC; and CABLE NIPPLE, ELECTRICAL. See also CAP, ELECTRICAL; CAP, PROTECTIVE, DUST AND MOISTURE SEAL; and SHIELD, ELECTRICAL CONNECTOR.
Alternate Parts: 10595, 10595, 10595, 1650-00-303-8649, 00-303-8649, 1650003038649, 003038649
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | JAN 01, 1963 | 00-303-8649 | 19302 ( BOOT, DUST AND MOISTURE SEAL ) |
REFERENCE DRAWINGS & PICTURES

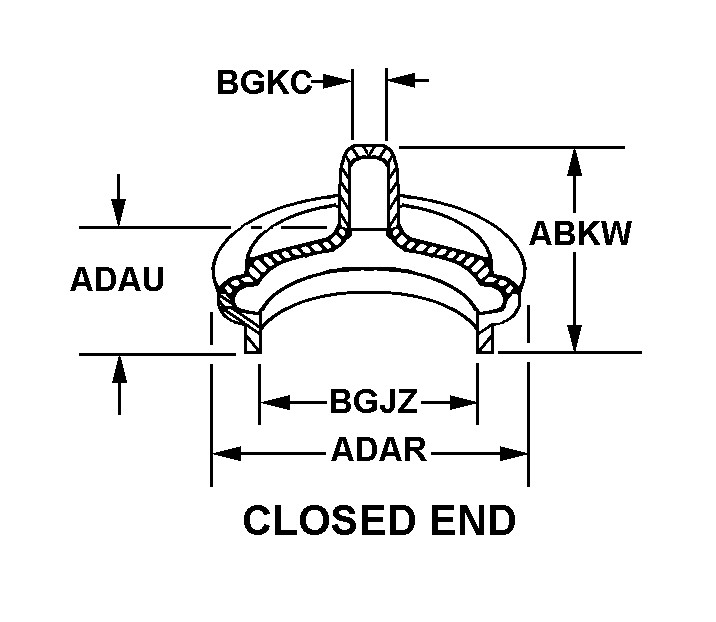

CLOSED END
Cross Reference | NSN 1650-00-303-8649
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10595 | 79294 | E-SYSTEMS INCMONTEK DIV |
| 10595 | 94697 | MOOG INC.DBA MOOG |
| 10595 | 19156 | MOOG INC.DIV MOOG AIRCRAFT, SALT LAKE |
Technical Data | NSN 1650-00-303-8649
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLOSED END |
| OVERALL HEIGHT | 0.995 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.375 INCHES NOMINAL |
| BODY HEIGHT | 0.625 INCHES MINIMUM AND 0.685 INCHES MAXIMUM |
| BASE INSIDE DIAMETER | 0.790 INCHES MINIMUM AND 0.800 INCHES MAXIMUM |
| OPENING INSIDE DIAMETER | 0.295 INCHES MINIMUM AND 0.300 INCHES MAXIMUM |
| MOUNTING METHOD | FRICTION |
| SEALING METHOD | COMPRESSION |
| FSC APPLICATION DATA | CYLINDER ASSY,HYDRAULIC SYSTEM,AIRCRAFT |
