NSN 1650-00-367-2969
Part Details | AIRCRAFT HYDRAULIC SWIVEL JOINT
1650-00-367-2969 A mechanical fluid passage joint designed for linkage of aircraft rigid hydraulic lines and components subject to pivotal, linear, or rotational position changes. The device allows two-directional flow of high pressure fluid and permits single plane rotation upon its axis. It may also allow for angular movement. Excludes SWIVEL JOINT, PIPE; and SWIVEL JOINT, TUBE.
Alternate Parts: 1423955, 142395-5, 1423955, 142395-5, 694928105, 694928-105, 1650-00-367-2969, 00-367-2969, 1650003672969, 003672969
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | FEB 27, 1974 | 00-367-2969 | 51062 ( SWIVEL JOINT, HYDRAULIC, AIRCRAFT ) |
REFERENCE DRAWINGS & PICTURES

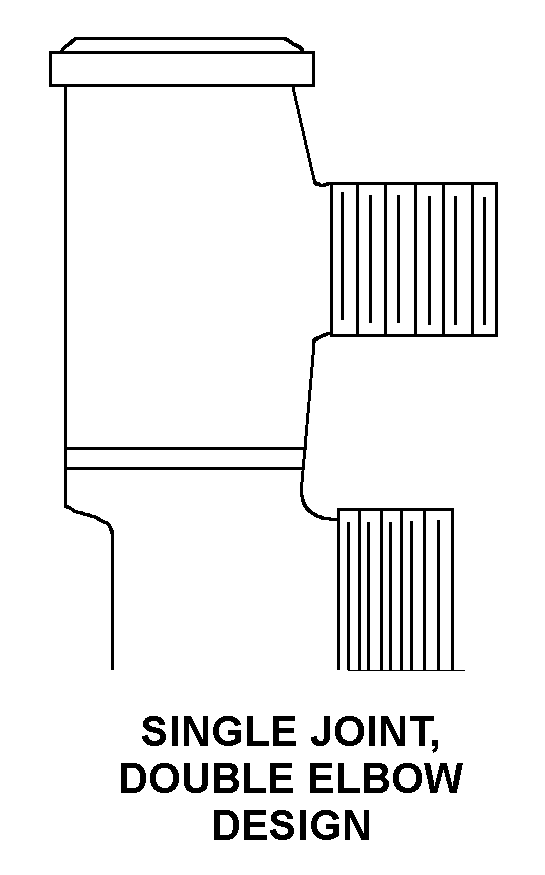

SINGLE JOINT, DOUBLE ELBOW DESIGN
Cross Reference | NSN 1650-00-367-2969
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 142395-5 | 14798 | DESIGNED METAL CONNECTIONS, INC.DBA PERMASWAGE USA |
| 142395-5 | 97928 | HUCK INTL INC |
| 694928-105 | 98897 | LOCKHEED MARTIN CORPORATIONDBA LOCKHEED MARTIN AERONAUTICS |
Technical Data | NSN 1650-00-367-2969
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SINGLE JOINT, DOUBLE ELBOW DESIGN |
