NSN 1660-00-109-9475
Part Details | COMPRESSED GAS CYLINDER VALVE CONNECTIONS ADAPTER
1660-00-109-9475 An adapter designed to connect a compressed gas cylinder valve outlet to a regulator, charging connection, or other mating part having a different connection for the same gas.
Alternate Parts: 8148650, MS220322, MS22032-2, 1660-00-109-9475, 00-109-9475, 1660001099475, 001099475
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | AUG 02, 1968 | 00-109-9475 | 21309 ( ADAPTER, COMPRESSED GAS CYLINDER VALVE CONNECTIONS ) |
REFERENCE DRAWINGS & PICTURES

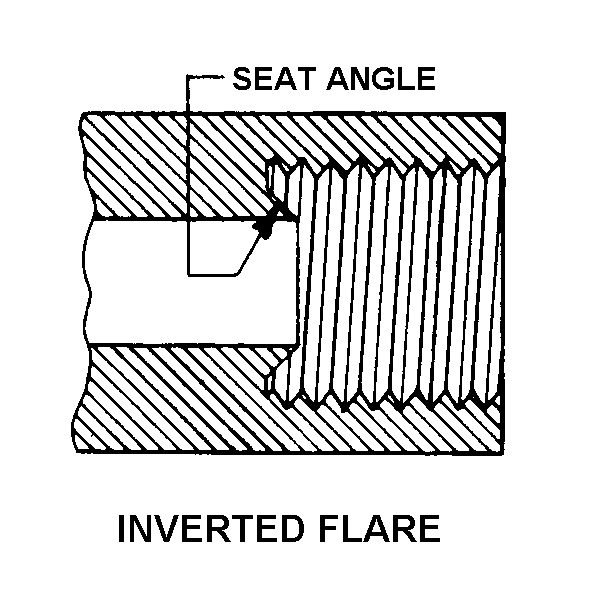

INVERTED FLARE
INVERTED FLARE
Cross Reference | NSN 1660-00-109-9475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8148650 | 98748 | AIR FORCE UNITED STATES DEPARTMENTOF THE |
| MS22032-2 | 96906 | MILITARY STANDARDSPROMULGATED BY MILITARY DEPARTMENTS |
Technical Data | NSN 1660-00-109-9475
| Characteristic | Specifications |
|---|---|
| SPECIFIC GAS FOR WHICH DESIGNED | OXYGEN |
| SECOND END CONNECTION TYPE | THREADED INTERNAL GAS CYLINDER |
| SECOND END STYLE DESIGNATOR | INVERTED FLARE |
| SECOND END THREAD SIZE | 0.500-20 |
| SECOND END THREAD SERIES/TYPE DESIGNATOR | UNJF |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END REDUCED PASSAGE INSIDE DIAMETER | 0.374 INCHES MINIMUM AND 0.377 INCHES MAXIMUM |
| UNION END | INCLUDED |
| WRENCHING FACILITY | INCLUDED |
| WRENCHING FACILITY SHAPE | HEXAGONAL |
| OVERALL LENGTH | 21.625 INCHES NOMINAL |
| SPECIAL FEATURES | ASSY CONSIST OF HOSE (P/N MS24548-5-18), ORIFICE ADAPTER (P/N AN6044-1), AND OXYGEN FILLER VALVE (P/N AN6024-5). FIRST END CONNECTOR IS QUICK DISCONNECT TYPE FOR USE WITH AN6027 ADAPTER |
| SPECIFICATION/STANDARD DATA | 96906-MS22032 GOVERNMENT STANDARD |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | RECHARGER ASSEMLBY, PORTABLE OXYGEN |
