NSN 1660-00-726-4212
Part Details | DIRT AND LIQUID DEFLECTOR
1660-00-726-4212 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.
Alternate Parts: 2035191, 203519-1, 203519, 1660-00-726-4212, 00-726-4212, 1660007264212, 007264212
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | MAR 31, 1972 | 00-726-4212 | 10255 ( DEFLECTOR, DIRT AND LIQUID ) |
REFERENCE DRAWINGS & PICTURES

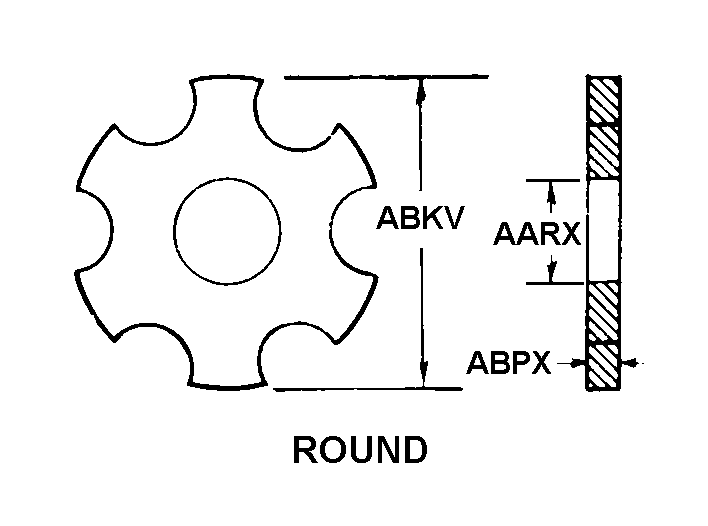

ROUND
Cross Reference | NSN 1660-00-726-4212
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 203519-1 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
| 203519 | 70210 | HONEYWELL INTERNATIONAL INC.DBA HONEYWELL |
Technical Data | NSN 1660-00-726-4212
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND |
| INSIDE DIAMETER | 0.472 INCHES MINIMUM AND 0.473 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 2.400 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.140 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 630 |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5643, 17-4PH ASSN STD SINGLE MATERIAL RESPONSE |
| OZONE RESISTANCE | NOT OZONE RESISTANT |
| MOUNTING HOLE TYPE | PLAIN |
| MOUNTING HOLE QUANTITY | 1 |
| MOUNTING HOLE DIAMETER | 0.472 INCHES MINIMUM AND 0.473 INCHES MAXIMUM |
| FSC APPLICATION DATA | AIR CONDITIONING HEAT ANDVENT SYSTEM,AIRCRAFT |
