NSN 1680-00-185-8191
Part Details | DOOR HANDLE
1680-00-185-8191 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.
Alternate Parts: 06111053, 0611105-3, 06111053, 0611105-3, 1680-00-185-8191, 00-185-8191, 1680001858191, 001858191
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | JAN 01, 1963 | 00-185-8191 | 18073 ( HANDLE, DOOR ) |

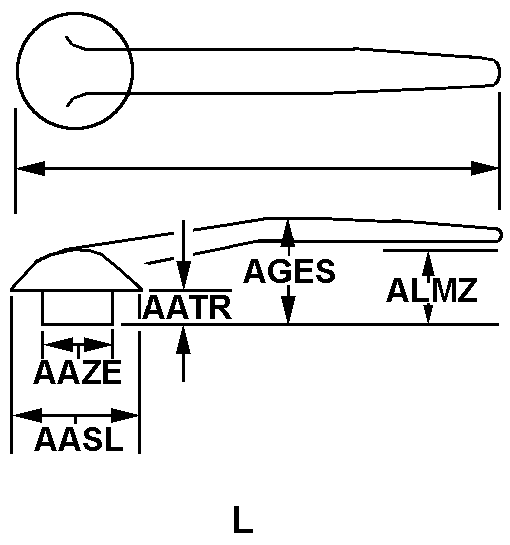

REFERENCE DRAWINGS & PICTURES
ROUND
L
Cross Reference | NSN 1680-00-185-8191
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0611105-3 | 71379 | CESSNA AIRCRAFT COMPANYDBA TEXTRON AVIATION |
| 0611105-3 | 4J976 | REGAL AIR INC |
Technical Data | NSN 1680-00-185-8191
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | L |
| HEAD DIAMETER | 1.000 INCHES NOMINAL |
| SHANK LENGTH | 0.250 INCHES NOMINAL |
| SHANK DIAMETER | 0.750 INCHES NOMINAL |
| OVERALL LENGTH | 4.438 INCHES NOMINAL |
| SHAFT ACCOMMODATION STYLE | ROUND |
| ACCOMMODATED SHAFT DIAMETER | 0.437 INCHES NOMINAL |
