NSN 1680-00-251-8911
Part Details | WEBBING STRAP
1680-00-251-8911 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: 11117981, 11-1-1798-1, 1680-00-251-8911, 00-251-8911, 1680002518911, 002518911
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 16 | JUN 24, 1973 | 00-251-8911 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES

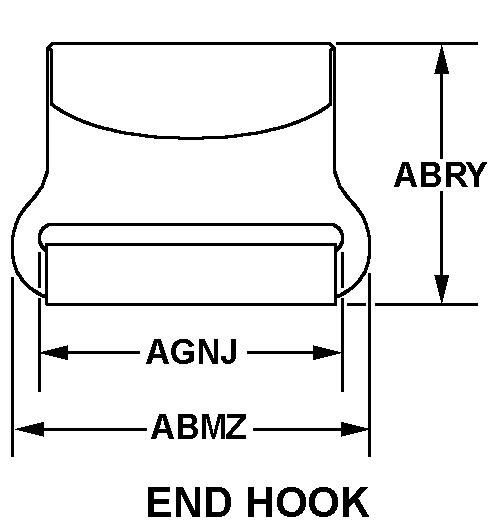

END HOOK
Cross Reference | NSN 1680-00-251-8911
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11-1-1798-1 | 81337 | ARMY, UNITED STATES DEPARTMENT OFTHE |
Technical Data | NSN 1680-00-251-8911
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC POLYHEXAMETHYLENE ADIPAMIDE |
| WIDTH | 1.375 INCHES MINIMUM AND 1.625 INCHES MAXIMUM |
| LENGTH | 48.625 INCHES MINIMUM AND 49.375 INCHES MAXIMUM |
| END TYPE | BOTH W/ATTACHMENTS |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-T-5038, TYPE 4 MIL SPEC SINGLE MATERIAL RESPONSE |
| ENVIRONMENTAL PROTECTION | HEAT RESISTANT AND LIGHT RESISTANT |
| COLOR | OLIVE DRAB |
| END ATTACHMENT/FASTENING FACILITY | BUCKLE AND END CLIP |
| BUCKLE LOCATION | ON THE END |
| FASTENED BUCKLE FEATURE | INCLUDED |
| BUCKLE FASTENING METHOD | SEWED |
| END CLIP STYLE DESIGNATOR | END HOOK |
| END CLIP QUANTITY | 1 |
| FSC APPLICATION DATA | SURVIVAL KIT,INDICIDUAL |
