NSN 1730-01-291-9248
Part Details | AIRCRAFT LANDING GEAR LIFT TRUCK
1730-01-291-9248 A hand-propelled wheeled vehicle with either a mechanical or hydraulic lifting device for installing, removing and transporting aircraft landing gear.
Alternate Parts: 17G1300221, 17G130022-1, 1730-01-291-9248, 01-291-9248, 1730012919248, 012919248
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 17 | JAN 07, 1989 | 01-291-9248 | 11194 ( TRUCK, LIFT, AIRCRAFT LANDING GEAR ) |
REFERENCE DRAWINGS & PICTURES

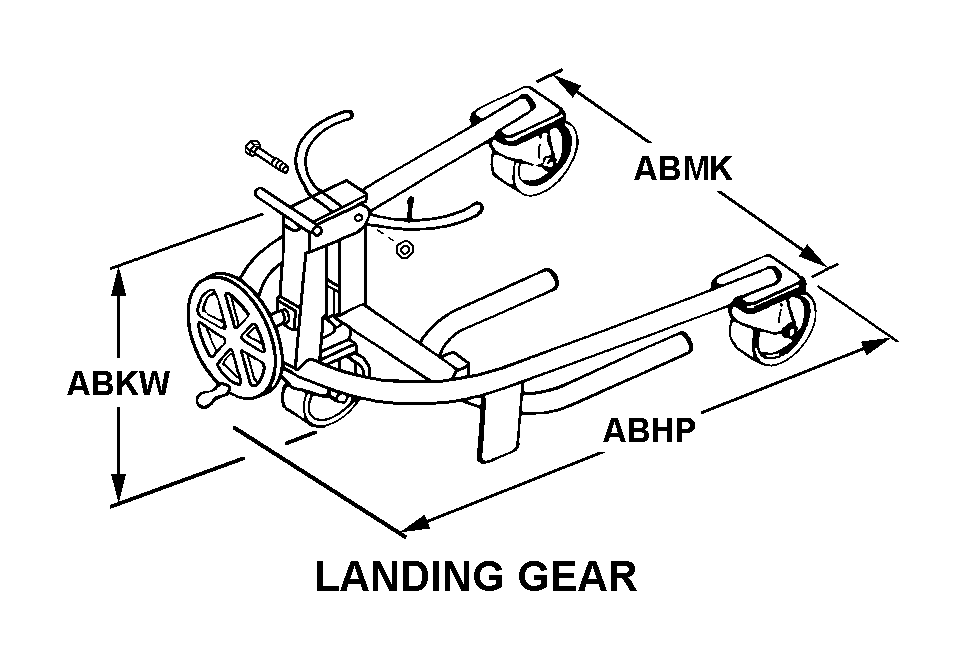

LANDING GEAR
Cross Reference | NSN 1730-01-291-9248
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 17G130022-1 | 88277 | BOEING COMPANY, THEDBA BOEING |
Technical Data | NSN 1730-01-291-9248
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | LANDING GEAR |
| OVERALL LENGTH | 80.000 INCHES NOMINAL |
| OVERALL HEIGHT | 52.000 INCHES NOMINAL |
| OVERALL WIDTH | 60.000 INCHES NOMINAL |
| FORK/PLATFORM MAXIMUM FREE LIFT HEIGHT | 20.000 INCHES |
| LIFT MECHANISM TYPE | HYDRAULIC |
| FUNCTIONAL DESCRIPTION | USED TO REMOVE/INSTALL NOSE LANDING GEAR STRUT WITH OR WITHOUT TIRES/WHEELS |
| FSC APPLICATION DATA | C-17 ACFT NOSE LANDING GEAR |
