NSN 2040-01-222-3427
Part Details | DECK VENTILATOR
2040-01-222-3427 A device fabricated of sheet or cast metal, consisting of an air scoop or a hood with provisions for mounting on the deck of a boat or ship to provide ventilation for the inclosed space below. The hood or head may have either an integral mounting flange or a separable base.
Alternate Parts: 41UT11071DETAIL5C, 41UT1107-1-DETAIL-5C, 2040-01-222-3427, 01-222-3427, 2040012223427, 012223427
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | DEC 11, 1985 | 01-222-3427 | 13122 ( VENTILATOR, DECK ) |
REFERENCE DRAWINGS & PICTURES

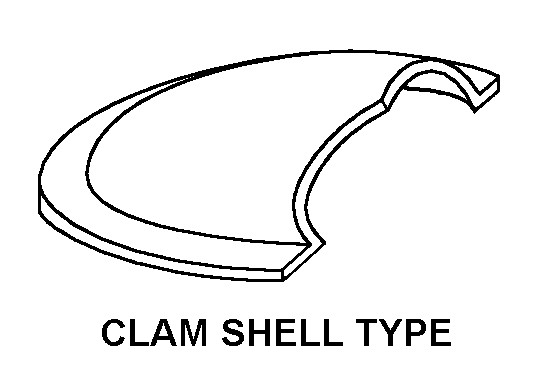

CLAM SHELL TYPE
Cross Reference | NSN 2040-01-222-3427
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 41UT1107-1-DETAIL-5C | 06101 | UNITED STATES COAST GUARDYARD |
Technical Data | NSN 2040-01-222-3427
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CLAM SHELL TYPE |
| OVERALL HEIGHT | 6.750 INCHES NOMINAL |
| BOTTOM OPENING SHAPE | ROUND |
| INSIDE DIAMETER | 4.000 INCHES NOMINAL |
| MOUTH OPENING SHAPE | ROUND |
| MOUTH OPENING INSIDE DIAMETER | 4.000 INCHES NOMINAL |
| INTEGRAL MOUNTING BASE | INCLUDED |
| WIDTH | 8.000 INCHES NOMINAL |
| LENGTH | 15.500 INCHES NOMINAL |
| VENTILATOR TYPE | FIXED POSITION |
| DECK PLATE | NOT INCLUDED |
| VENTILATION CLOSING DEVICE | INCLUDED |
| BELOW DECK CLOSING FEATURE | NOT INCLUDED |
| WATERPROOF FEATURE | INCLUDED |
| INSECTPROOF FEATURE | NOT INCLUDED |
| SPECIAL FEATURES | MATERIAL: PLASTIC, FIBERGLASS REINFORCED |
