NSN 2040-01-334-5037
Part Details | VENTILATION DUCT TERMINAL
2040-01-334-5037 A fabricated device, generally constructed with a flared end and a straight or elbow type body. It may contain a damper and is designed to be used at the end of a ventilating duct to control the quantity and/or the direction of air flow.
Alternate Parts: 5136295489, PC F108, 513-6295489, PC F-108, 2040-01-334-5037, 01-334-5037, 2040013345037, 013345037
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | FEB 23, 1991 | 01-334-5037 | 15042 ( TERMINAL, VENTILATION DUCT ) |
REFERENCE DRAWINGS & PICTURES

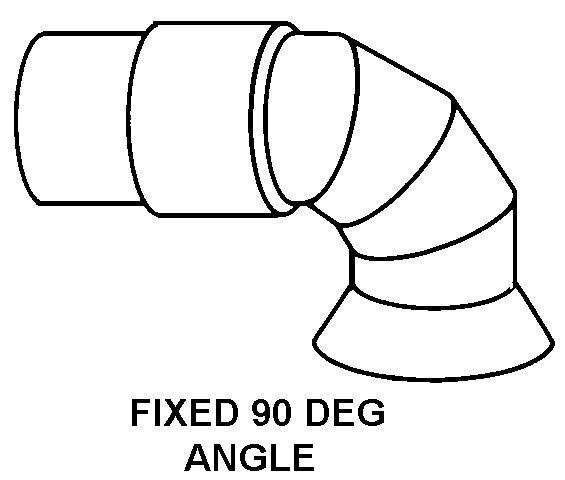

FIXED 90 DEG ANGLE
Cross Reference | NSN 2040-01-334-5037
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 513-6295489, PC F-108 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 2040-01-334-5037
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | FIXED 90 DEG ANGLE |
| END ATTACHMENT DIAMETER | 3.375 INCHES MAXIMUM |
| DAMPER | NOT INCLUDED |
