NSN 2040-01-455-6948
Part Details | FLUKED MARINE ANCHOR
2040-01-455-6948 An assembly with one or two fixed or pivoted hooks or flukes at its lower end that is attached to a ship or other floating vessel by a cable or a chain, and that, being cast overboard, lays hold of the bottom material and thus holds the ship or other floating vessel in a particular location.
Alternate Parts: 700$22, 700$-22, 22, 2040-01-455-6948, 01-455-6948, 2040014556948, 014556948
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | MAY 12, 1998 | 01-455-6948 | 04944 ( ANCHOR, MARINE, FLUKED ) |
REFERENCE DRAWINGS & PICTURES

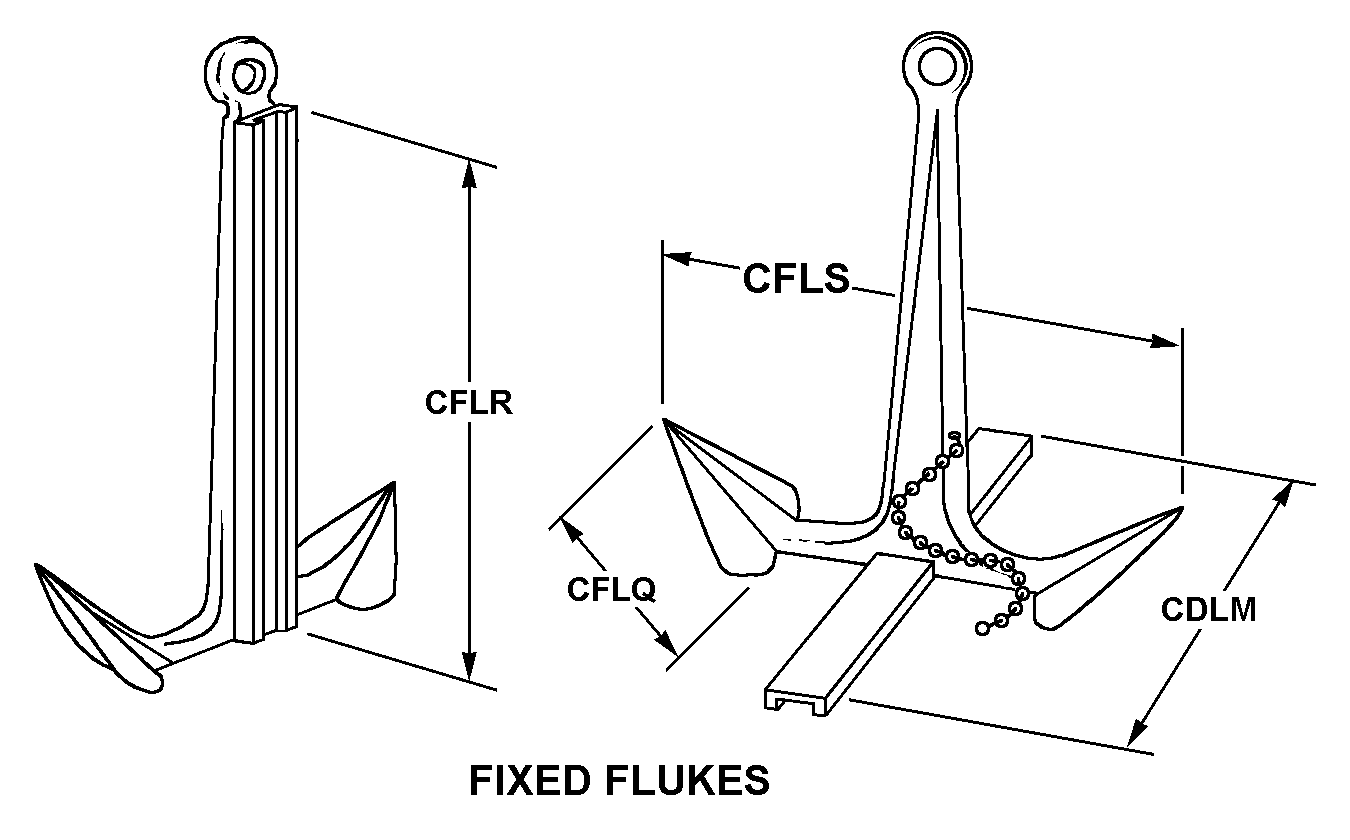

FIXED FLUKE
Cross Reference | NSN 2040-01-455-6948
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 700$-22 | 0TDN3 | BYFIELD MARINE SUPPLY INC |
| 22 | 0TDN3 | BYFIELD MARINE SUPPLY INC |
Technical Data | NSN 2040-01-455-6948
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | ZINC |
| WEIGHT | 22.000 POUNDS NOMINAL |
| FLUKE DESIGN | FIXED |
| STOCK DESIGN | FIXED |
| CONSTRUCTION METHOD AND LOCATION | FABRICATED OVERALL |
| SHACKLE | INCLUDED |
| FLUKE HOLE | NOT INCLUDED |
| BALANCING BAND | NOT INCLUDED |
| STYLE DESIGNATOR | FIXED FLUKE |
| STOCK OVERALL LENGTH | 26.750 INCHES NOMINAL |
| FLUKE LENGTH FROM STOCK CENTERLINE TO TIP | 19.000 INCHES NOMINAL |
| SHANK LENGTH FROM CROWN FLAT BASE TO SHACKLE PIN HOLE CENTERLINE | 34.375 INCHES NOMINAL |
| SPECIAL FEATURES | 7/16IN. GALVANIZED SHACKLE SIZE |
| END ITEM IDENTIFICATION | LAUNCH,HYDROG |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | ANCHOR |
