NSN 2040-01-474-0655
Part Details | DOOR HANDLE
2040-01-474-0655 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.
Alternate Parts: HN1521104 PART NO. 40, HN152-1104 PART NO. 40, HN1521104, HN152-1104, HN1521103 PART NO. 85, HN152-1103 PART NO. 85, HN1521103, HN152-1103, 2040-01-474-0655, 01-474-0655, 2040014740655, 014740655
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | APR 24, 2000 | 01-474-0655 | 18073 ( HANDLE, DOOR ) |

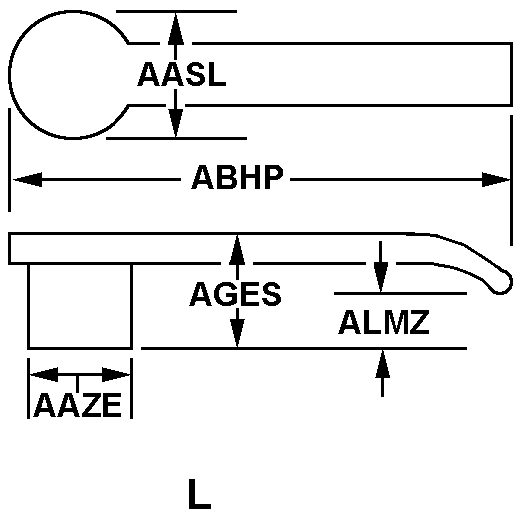

REFERENCE DRAWINGS & PICTURES
L
Cross Reference | NSN 2040-01-474-0655
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HN152-1104 PART NO. 40 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| HN152-1104 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| HN152-1103 PART NO. 85 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| HN152-1103 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 2040-01-474-0655
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | L |
| MOUNTING METHOD | PIN |
| MOUNTING FACILITY DIAMETER | 0.125 INCHES NOMINAL |
| MOUNTING FACILITY LENGTH | 1.750 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 4.750 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL-GRAY GALVANIZED STEEL; INSIDE HANDLE |
| END ITEM IDENTIFICATION | CVN65; FOR HINGED BALLISTIC DOORS |
