NSN 2040-01-481-1278
Part Details | DOOR HANDLE
2040-01-481-1278 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.
Alternate Parts: HN1521102 PART NO. 1, HN152-1102 PART NO. 1, HN1521102, HN152-1102, 2040-01-481-1278, 01-481-1278, 2040014811278, 014811278
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | DEC 19, 2000 | 01-481-1278 | 18073 ( HANDLE, DOOR ) |

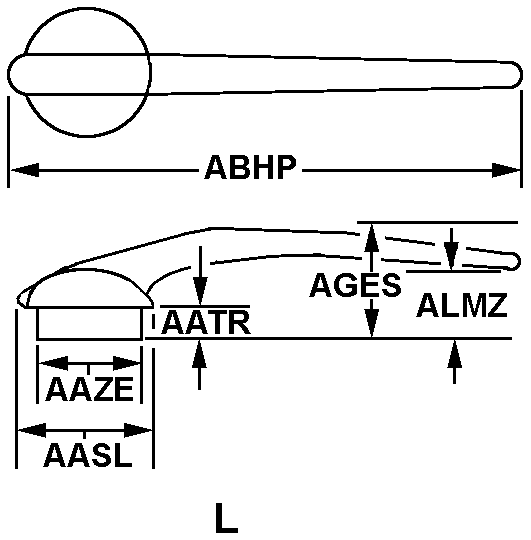

REFERENCE DRAWINGS & PICTURES
L
Cross Reference | NSN 2040-01-481-1278
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| HN152-1102 PART NO. 1 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| HN152-1102 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Technical Data | NSN 2040-01-481-1278
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | L |
| HEAD DIAMETER | 1.785 INCHES NOMINAL |
| SHANK DIAMETER | 1.500 INCHES NOMINAL |
| OVERALL LENGTH | 6.7500 INCHES NOMINAL |
| MOUNTING METHOD | THREADED HOLE |
| MOUNTING FACILITY QUANTITY | 1 |
| THREAD SERIES DESIGNATOR | UNJ |
| NOMINAL THREAD SIZE | 0.3125 INCHES |
| THREAD QUANTITY PER INCH | 24 |
| THREAD CLASS | 3B |
| SPECIAL FEATURES | MATERIAL STEEL ALLOY |
| END ITEM IDENTIFICATION | HINGED BALLISTIC DOORS |
