NSN 2040-01-532-1517
Part Details | DECK VENTILATOR
2040-01-532-1517 A device fabricated of sheet or cast metal, consisting of an air scoop or a hood with provisions for mounting on the deck of a boat or ship to provide ventilation for the inclosed space below. The hood or head may have either an integral mounting flange or a separable base.
Alternate Parts: 1312DP0CHR, HV10140, H-V-10140, 2040-01-532-1517, 01-532-1517, 2040015321517, 015321517
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 20 | JUL 29, 2005 | 01-532-1517 | 13122 ( VENTILATOR, DECK ) |
REFERENCE DRAWINGS & PICTURES

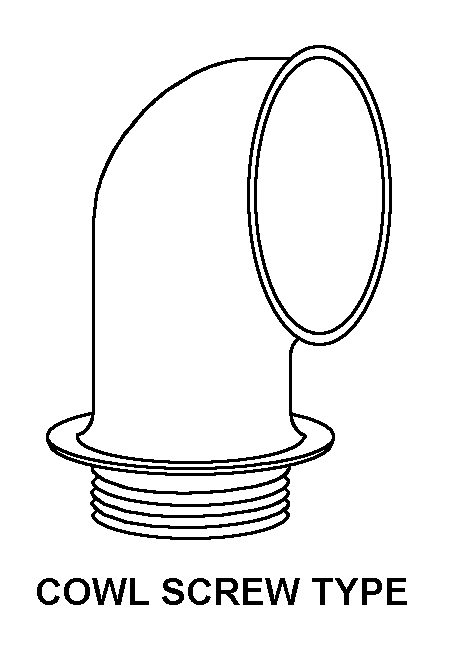

COWL SCREW TYPE
Cross Reference | NSN 2040-01-532-1517
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1312DP0CHR | 46576 | PERKO INC |
| H-V-10140 | 60042 | ZODIAC OF NORTH AMERICA, INC.DIV MILPRO |
Technical Data | NSN 2040-01-532-1517
| Characteristic | Specifications |
|---|---|
| SURFACE TREATMENT | CHROMIUM |
| STYLE DESIGNATOR | COWL SCREW TYPE |
| OVERALL HEIGHT | 5.750 INCHES NOMINAL |
| BOTTOM OPENING SHAPE | RECTANGULAR |
| INSIDE LENGTH | 4.375 INCHES NOMINAL |
| INSIDE WIDTH | 2.625 INCHES NOMINAL |
| MOUTH OPENING SHAPE | RECTANGULAR |
| MOUTH OPENING INSIDE HEIGHT | 8.000 INCHES NOMINAL |
| INTEGRAL MOUNTING BASE | INCLUDED |
| WIDTH | 4.375 INCHES NOMINAL |
| VENTILATOR TYPE | FIXED POSITION |
| DECK PLATE | NOT INCLUDED |
| SCREW CONNECTION SIZE | SIZE 8 |
| VENTILATION CLOSING DEVICE | NOT INCLUDED |
| WATERPROOF FEATURE | INCLUDED |
| INSECTPROOF FEATURE | NOT INCLUDED |
| SPECIAL FEATURES | MATERIAL: METAL |
| PART NAME ASSIGNED BY CONTROLLING AGENCY | COWL VENT |
