NSN 2510-00-412-1954
Part Details | LEAF SPRING ASSEMBLY SHACKLE
2510-00-412-1954 An open link of various shapes with extended legs, usually having transverse holes in the legs to accommodate a retaining pin, bolt, bushing, or the like, or having threaded legs for a plate attachment, and having a connection facility opposite the legs so designed to attach a SPRING ASSEMBLY, LEAF to a rigid supporting hanger on a vehicle. Excludes SHACKLE and CLEVIS, ROD END.
Alternate Parts: C60Z5630A, C60Z-5630-A, C60Z5630A, C60Z-5630-A, 2510-00-412-1954, 00-412-1954, 2510004121954, 004121954
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | APR 27, 1970 | 00-412-1954 | 22100 ( SHACKLE, LEAF SPRING ASSEMBLY ) |

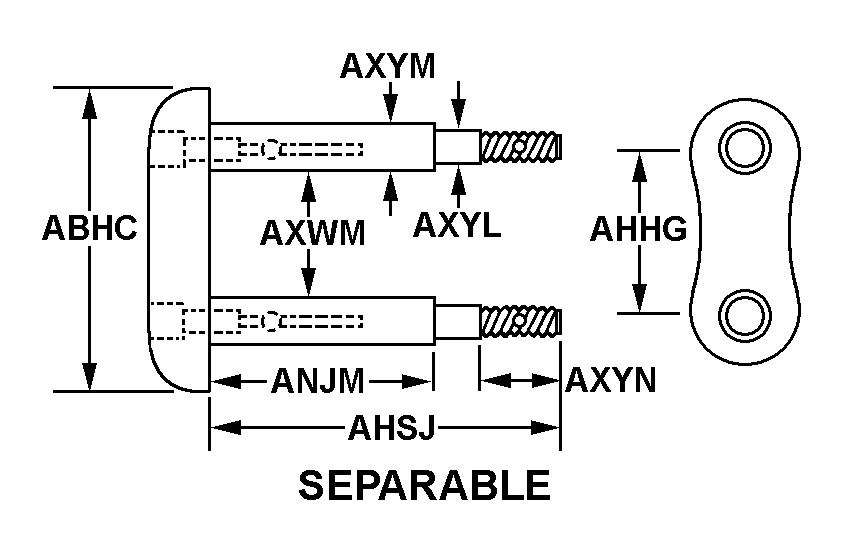

REFERENCE DRAWINGS & PICTURES
SEPARABLE
Cross Reference | NSN 2510-00-412-1954
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| C60Z-5630-A | 23040 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
| C60Z-5630-A | 57526 | FORD MOTOR COMPANY |
Technical Data | NSN 2510-00-412-1954
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SEPARABLE |
| OVERALL WIDTH | 5.000 INCHES NOMINAL |
| DISTANCE BETWEEN LEGS | 3.500 INCHES NOMINAL |
| LEG LENGTH | 3.843 INCHES NOMINAL |
| BEARING SURFACE LENGTH | 3.000 INCHES NOMINAL |
| WIDTH BETWEEN LEGS | 3.000 INCHES NOMINAL |
| LEG UNTHREADED PORTION DIAMETER | 0.422 INCHES NOMINAL |
| BEARING SURFACE DIAMETER | 0.507 INCHES NOMINAL |
| LEG UNTHREADED PORTION LENGTH | 0.125 INCHES NOMINAL |
| FEATURES PROVIDED | BUSHING |
