NSN 2510-00-460-7031
Part Details | DIRECT ACTION SHOCK ABSORBER
2510-00-460-7031 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Alternate Parts: B7AZ18125B, AW10, 2510-00-460-7031, 00-460-7031, 2510004607031, 004607031
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 09, 1970 | 00-460-7031 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |
REFERENCE DRAWINGS & PICTURES
STRAIGHT STEM/STUD MOUNT

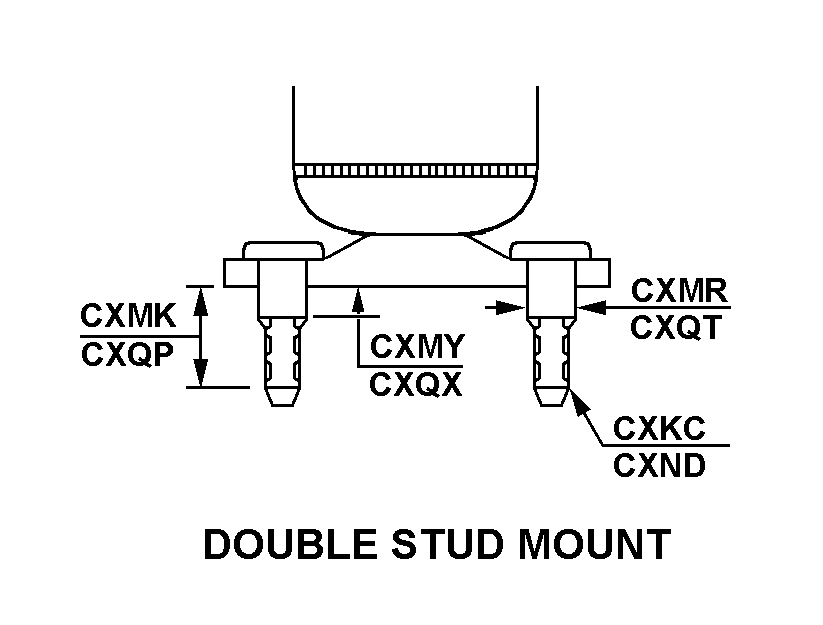

DOUBLE STUD MOUNT
STRAIGHT STEM/STUD MOUNT
CROSS PIN MOUNTING, DRILLED AND SLOTTED
Cross Reference | NSN 2510-00-460-7031
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B7AZ18125B | 23040 | FORD MOTOR COFORD PARTS AND SERVICE DIV |
| AW10 | 01637 | FORD MOTOR CRAFT |
Technical Data | NSN 2510-00-460-7031
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |
| PISTON END CONNECTION STYLE | STRAIGHT STEM/STUD MOUNT |
| PISTON END NOMINAL SHANK LENGTH | 2.500 INCHES |
| PISTON END NOMINAL SHANK DIAMETER | 0.437 INCHES |
| PISTON END NOMINAL SHANK UNTHREADED LENGTH | 1.375 INCHES |
| CYLINDER END CONNECTION STYLE | CROSS PIN MOUNTING, DRILLED AND SLOTTED |
| CYLINDER END NOMINAL SHANK LENGTH | 2.500 INCHES |
| CYLINDER END NOMINAL SHANK DIAMETER | 0.437 INCHES |
| CYLINDER END NOMINAL SHANK UNTHREADED LENGTH | 1.375 INCHES |
| NOMINAL EXTENDED LENGTH | 24.250 INCHES |
| NOMINAL COMPRESSED LENGTH | 16.250 INCHES |
| PROTECTIVE SHIELD TYPE | STONE |
