NSN 2510-00-734-7868
Part Details | FIFTH WHEEL KINGPIN
2510-00-734-7868 A metal item designed for mounting to a fifth wheel coupler or fifth wheel upper plate to provide a towing and pivot connection between a truck-tractor or dolly and the semitrailer.
Alternate Parts: 651356, 7347868, 2510-00-734-7868, 00-734-7868, 2510007347868, 007347868
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-734-7868 | 11407 ( KINGPIN, FIFTH WHEEL ) |
REFERENCE DRAWINGS & PICTURES

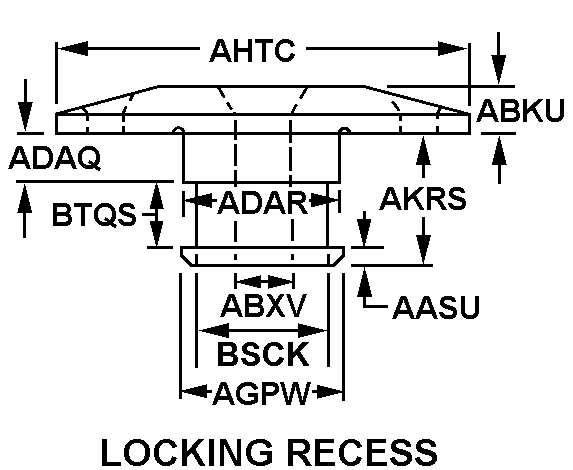

LOCKING RECESS
Cross Reference | NSN 2510-00-734-7868
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 651356 | 23705 | FRUEHAUF CORP |
| 7347868 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2510-00-734-7868
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | LOCKING RECESS |
| HEAD HEIGHT | 0.625 INCHES NOMINAL |
| FLANGE THICKNESS | 1.125 INCHES NOMINAL |
| BORE DIAMETER | 1.500 INCHES NOMINAL |
| BODY LENGTH | 1.250 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 4.484 INCHES NOMINAL |
| HEAD OUTSIDE DIAMETER | 4.375 INCHES NOMINAL |
| FLANGE OUTSIDE DIAMETER | 12.000 INCHES NOMINAL |
| PIN LENGTH | 3.375 INCHES NOMINAL |
| LOCKING RECESS LENGTH | 1.500 INCHES NOMINAL |
| MOUNTING END TYPE | FLANGE |
| FLANGE SHAPE | ROUND |
| MOUNTING FLANGE BOLT HOLE QUANTITY | 4 |
| MOUNTING HOLE DIAMETER | 1.250 INCHES NOMINAL |
| MOUNTING HOLE SPACING | EQUALLY SPACED ON 8.500 IN. BOLT CIRCLE |
