NSN 2510-01-092-4133
Part Details | DIRECT ACTION SHOCK ABSORBER
2510-01-092-4133 A damper, either frictional or hydraulic, designed to dampen the shock of suddenly applied force and/or to control spring rebound and oscillation, usually attached to the vehicle frame, body or hull and connected to an axle, spring, spring support web or pad or between suspension arms of track-laying vehicles. See also MOUNT, RESILIENT and SHOCK ABSORBER, LEVER ACTION.
Alternate Parts: 66608, 90042162, 900-42-162, AR1434, 11684344, 2510-01-092-4133, 01-092-4133, 2510010924133, 010924133
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | MAR 26, 1980 | 01-092-4133 | 18434 ( SHOCK ABSORBER, DIRECT ACTION ) |
REFERENCE DRAWINGS & PICTURES

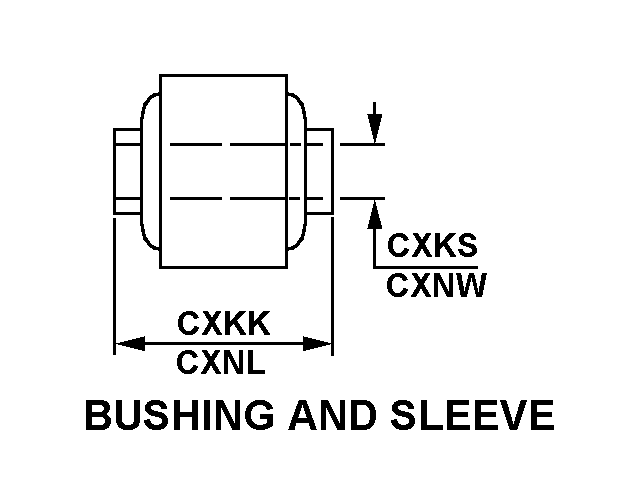

BUSHING AND SLEEVE
BUSHING AND SLEEVE
Cross Reference | NSN 2510-01-092-4133
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 66608 | 0VW60 | EUCLID INDUSTRIES INC |
| 900-42-162 | 98171 | LEAR SIEGLER TRUCK PRODUCTS CORPNEWAY DIV |
| AR1434 | 98171 | LEAR SIEGLER TRUCK PRODUCTS CORPNEWAY DIV |
| 11684344 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2510-01-092-4133
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | HYDRAULIC |
| PISTON END CONNECTION STYLE | BUSHING AND SLEEVE |
| PISTON END NOMINAL OVERALL LENGTH | 1.750 INCHES |
| CYLINDER END CONNECTION STYLE | BUSHING AND SLEEVE |
| CYLINDER END NOMINAL OVERALL LENGTH | 1.750 INCHES |
| NOMINAL EXTENDED LENGTH | 17.240 INCHES |
| NOMINAL COMPRESSED LENGTH | 11.480 INCHES |
| PROTECTIVE SHIELD TYPE | DUST |
| END ITEM IDENTIFICATION | 2330-01-163-5026 |
