NSN 2520-00-301-7388
Part Details | BELL CRANK
2520-00-301-7388 An item in the form of two arms at an angle, having its fulcrum at the apex of the angle, and used to provide a means of changing the direction or varying the intensity of a pushing or pulling force. See also ARM (as modified); and LEVER (as modified).
Alternate Parts: 7345832, 2520-00-301-7388, 00-301-7388, 2520003017388, 003017388
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-301-7388 | 22321 ( BELL CRANK ) |
REFERENCE DRAWINGS & PICTURES

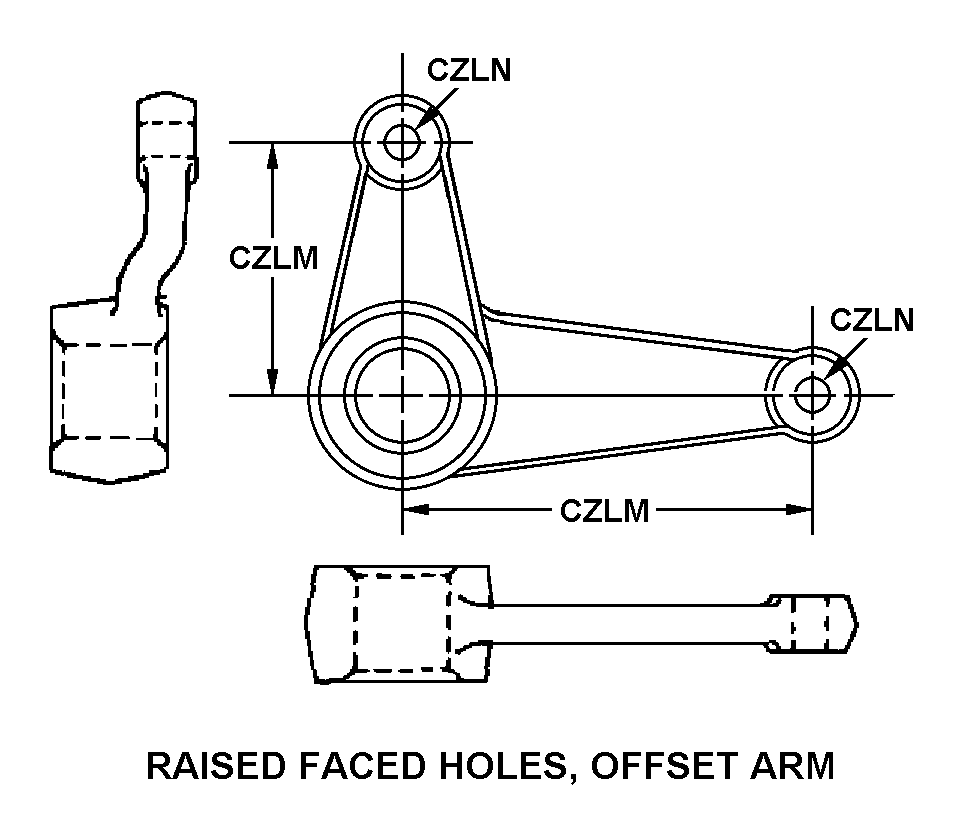

RAISED FACED HOLES, OFFSET ARM
Cross Reference | NSN 2520-00-301-7388
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7345832 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2520-00-301-7388
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | RAISED FACED HOLES, OFFSET ARM |
| BORE LENGTH | 0.745 INCHES MINIMUM AND 0.755 INCHES MAXIMUM |
| BORE DIAMETER | 0.812 INCHES MINIMUM AND 0.813 INCHES MAXIMUM |
| FSC APPLICATION DATA | TRAVERSING MECHANISM,TANK TURRET |
