NSN 2520-00-358-8376
Part Details | PROPELLER SHAFT DUST CAP
2520-00-358-8376 A cap designed to exclude dirt from shaft spline, and retain lubricant.
Alternate Parts: 208304, 208304, 07208304, 07-208304, 07208304, 07-208304, 2520-00-358-8376, 00-358-8376, 2520003588376, 003588376
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-358-8376 | 10960 ( CAP, DUST, PROPELLER SHAFT ) |
REFERENCE DRAWINGS & PICTURES

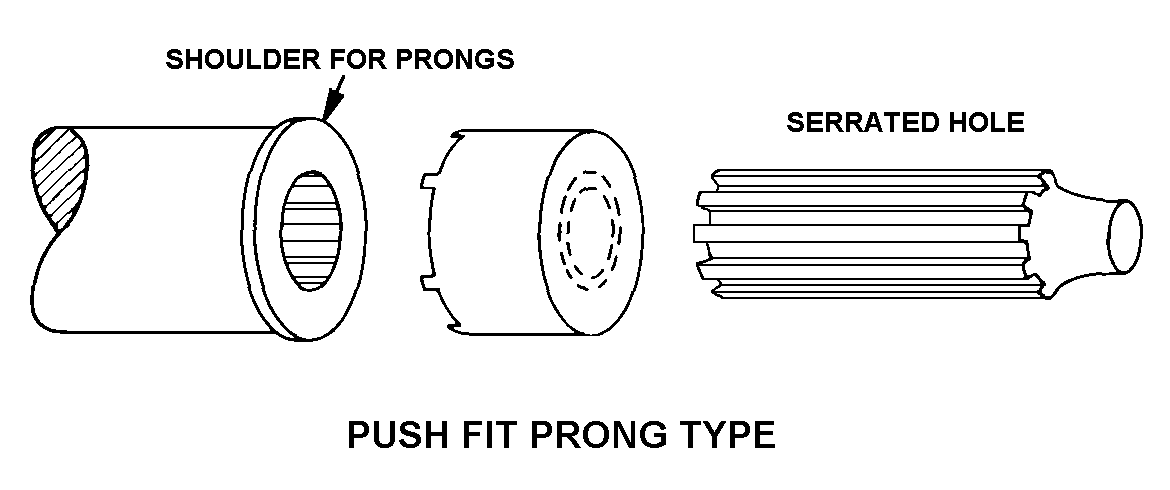

PUSH FIT PRONG TYPE
Cross Reference | NSN 2520-00-358-8376
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 208304 | 12603 | CLARK EQUIPMENT CO |
| 208304 | 77237 | DANA OFF HIGHWAY PRODUCTS, LLC |
| 07-208304 | 16662 | LIFT PARTS MFG CO INCDIV OF ECHLIN MFG CO THE |
| 07-208304 | 66654 | TVH PARTS CO. |
Technical Data | NSN 2520-00-358-8376
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | PUSH FIT PRONG TYPE |
| OUTSIDE DIAMETER | 2.000 INCHES NOMINAL |
| INSIDE DIAMETER | 1.625 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| SPECIAL FEATURES | SPLINE MINOR DIA 1.219 IN./MAJOR DIA 1.625 IN.;GRIPPING SURFACE CONDITION-PLAIN;MATL THK 0.375 IN.;SPLINE QTY 10;GRIPPING PRONGS 2;UNIT PKG QTY 1;BORE TYPE-STRAIGHT SPLINE |
| END ITEM IDENTIFICATION | PROPELLER SHAFT,VEHICULAR |
