NSN 2530-00-103-8244
Part Details | GREASE CAP
2530-00-103-8244 A cap, usually of metal, designed to retain lubricant and excludes foreign matter from bearings. It is normally used as an end closure on items designed to rotate on a shaft,such as a wheel hub, or fit into a housing at the end of a rotating shaft, or the like. Do not use if a more specific name applies. For items mounted by bolt holes, see COVER, ACCESS.
Alternate Parts: 92101, 601, 45896, 2530-00-103-8244, 00-103-8244, 2530001038244, 001038244
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JUN 14, 1968 | 00-103-8244 | 22874 ( CAP, GREASE ) |
REFERENCE DRAWINGS & PICTURES

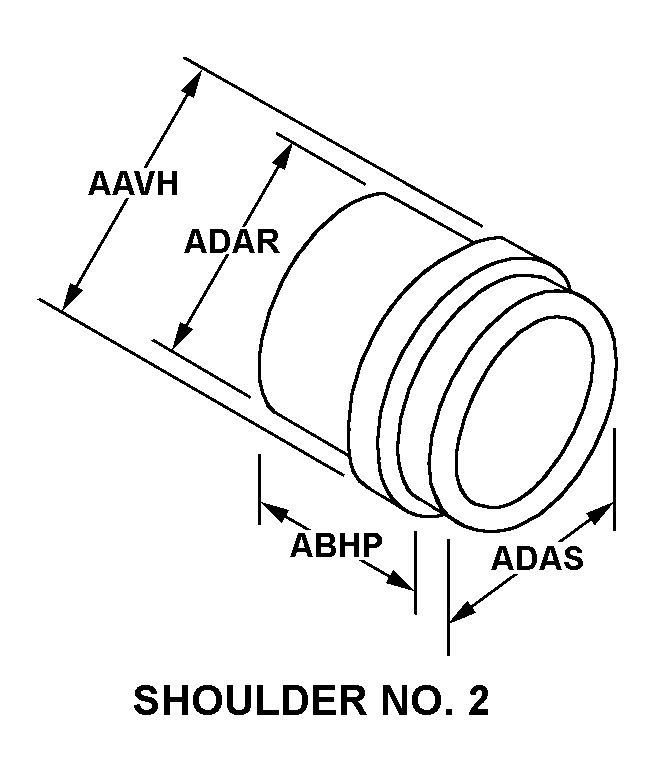

SHOULDER NO. 2
Cross Reference | NSN 2530-00-103-8244
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 92101 | 1FK49 | HAYES AXLE CO |
| 601 | 33116 | KELSEY-HAYES COWHEEL DRUM AND BRAKE DIV |
| 45896 | 33116 | KELSEY-HAYES COWHEEL DRUM AND BRAKE DIV |
Technical Data | NSN 2530-00-103-8244
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | SHOULDER NO. 2 |
| SHOULDER DIAMETER | 3.578 INCHES NOMINAL |
| OVERALL LENGTH | 1.050 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 2.448 INCHES NOMINAL |
| BODY INSIDE DIAMETER | 2.318 INCHES NOMINAL |
| SPECIAL FEATURES | C/BORE FEATURE-NOT INCL.;GROOVED FACE-NOT PROVIDED;ANTISTATIC SPRING-NOT INCL.;SURFACE TREAT.-ZINC PLATED;TONGUE DIA 2.446/2.450 IN.;DISTANCE FROM END TO SHOULDER:0.250 IN. |
| END ITEM IDENTIFICATION | AXLE,VEHICULAR,NONDRIVING |
