NSN 2530-00-111-5133
Part Details | AUTOMOTIVE WHEEL SIDE RING
2530-00-111-5133 A one-piece metal device designed to fit the outer circumference of a wheel or wheel rim. It is held in position by a locking ring or has self-locking features for positioning and retaining a pneumatic tire. It may also be split and/or held by bolts and studs.
Alternate Parts: SR2385, SR238-5, SR2375, SR-237-5, 145450R2, 3695974, 3695974ND, 3695974ND, 3695974, 145450R2, 145450R1, 2530-00-111-5133, 00-111-5133, 2530001115133, 001115133
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | AUG 19, 1968 | 00-111-5133 | 10969 ( RING, SIDE, AUTOMOTIVE WHEEL ) |
REFERENCE DRAWINGS & PICTURES

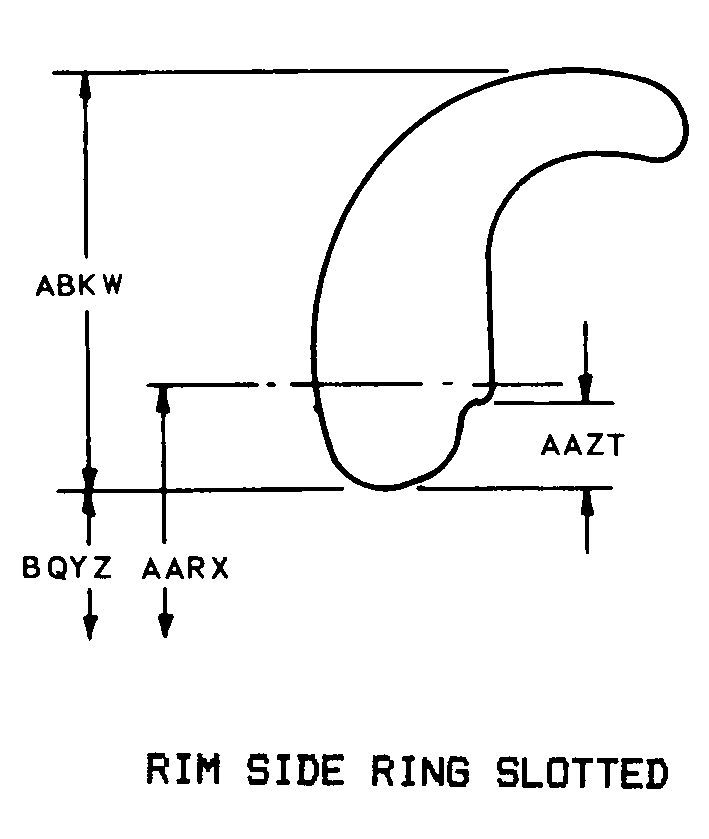

RIM SIDE RING SLOTTED
Cross Reference | NSN 2530-00-111-5133
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| SR238-5 | 22337 | BRIDGESTONE AMERICAS TIREOPERATIONS, LLC |
| SR-237-5 | 22337 | BRIDGESTONE AMERICAS TIREOPERATIONS, LLC |
| 145450R2 | 45RP7 | DRESSTA NORTH AMERICA LTD |
| 3695974 | 24617 | GENERAL MOTORS CORP |
| 3695974ND | 11862 | GENERAL MOTORS CORPCHEVROLET MOTOR DIV |
| 3695974ND | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 3695974 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 145450R2 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
| 145450R1 | 92679 | NAVISTAR INTL CORPMELROSE PARK ENGINE PLANT LOCATION |
Technical Data | NSN 2530-00-111-5133
| Characteristic | Specifications |
|---|---|
| CROSS-SECTIONAL SHAPE STYLE | RIM SIDE RING SLOTTED |
| INSIDE DIAMETER | 20.000 INCHES NOMINAL |
| SLOT DEPTH | 0.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.096 INCHES MINIMUM AND 1.190 INCHES MAXIMUM |
| INSIDE CIRCUMFERENCE | 64.375 INCHES NOMINAL |
| DESIGN TYPE | ENDLESS SNAP-ON |
| SIZE DESIGNATOR | 20X6.5 |
| LEVERAGE SLOT | NOT INCLUDED |
