NSN 2530-00-123-0422
Part Details | HYDRAULIC BRAKE MASTER CYLINDER PUSH ROD
2530-00-123-0422 An item in the form of a rod with one end designed to mate with the socket of a PISTON, HYDRAULIC BRAKE, MASTER CYLINDER, the other end designed to connect with various forms of rod connectors.
Alternate Parts: 11633753, 2530-00-123-0422, 00-123-0422, 2530001230422, 001230422
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | NOV 01, 1968 | 00-123-0422 | 18736 ( PUSH ROD, HYDRAULIC BRAKE MASTER CYLINDER ) |
REFERENCE DRAWINGS & PICTURES

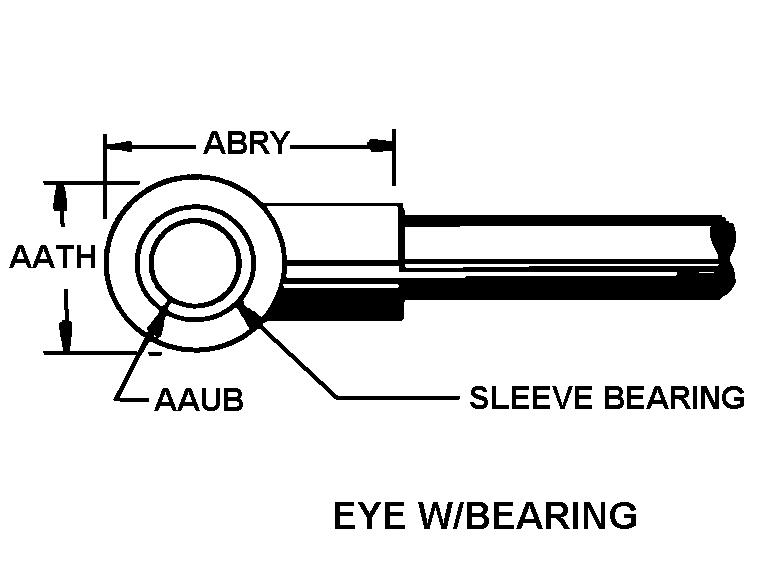

EYE W/BEARING

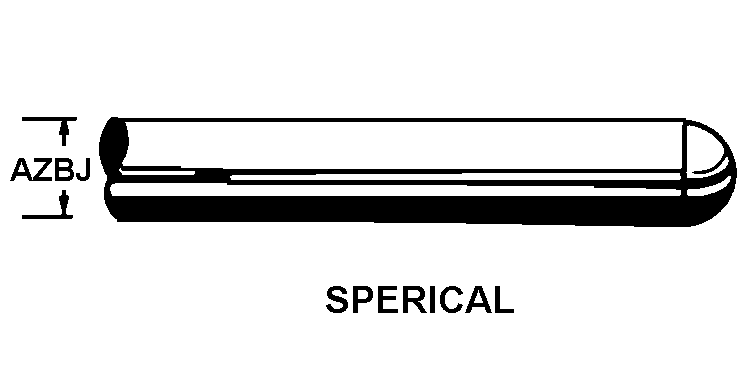

SPERICAL
Cross Reference | NSN 2530-00-123-0422
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11633753 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2530-00-123-0422
| Characteristic | Specifications |
|---|---|
| LINK ROD CONNECTING END STYLE | EYE W/BEARING |
| EYE BREADTH | 0.750 INCHES NOMINAL |
| HOLE DIAMETER | 0.375 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| LENGTH | 1.770 INCHES MINIMUM AND 1.850 INCHES MAXIMUM |
| PISTON SOCKET END STYLE | SPERICAL |
| ROD DIAMETER | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 1109 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-637, COMP 1109 FED SPEC 2ND MATERIAL RESPONSE |
| OVERALL LENGTH | 2.930 INCHES MINIMUM AND 3.070 INCHES MAXIMUM |
