NSN 2530-00-339-1757
Part Details | BALL SOCKET SEAT
2530-00-339-1757 A rigid item, usually circular in shape, having a concave or bevel bearing surface on one end. It is designed to mate with and provide a wear surface for the ball of a ball stud, control rod, arm, or the like. The other end is usually flat, flanged, or offset and is usually designed to mate with a flat surface or spring. Includes metal items having a plastic ball socket insert. See also WASHER, CONCAVE.
Alternate Parts: 2452, 2530-00-339-1757, 00-339-1757, 2530003391757, 003391757
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-339-1757 | 19451 ( SEAT, BALL SOCKET ) |

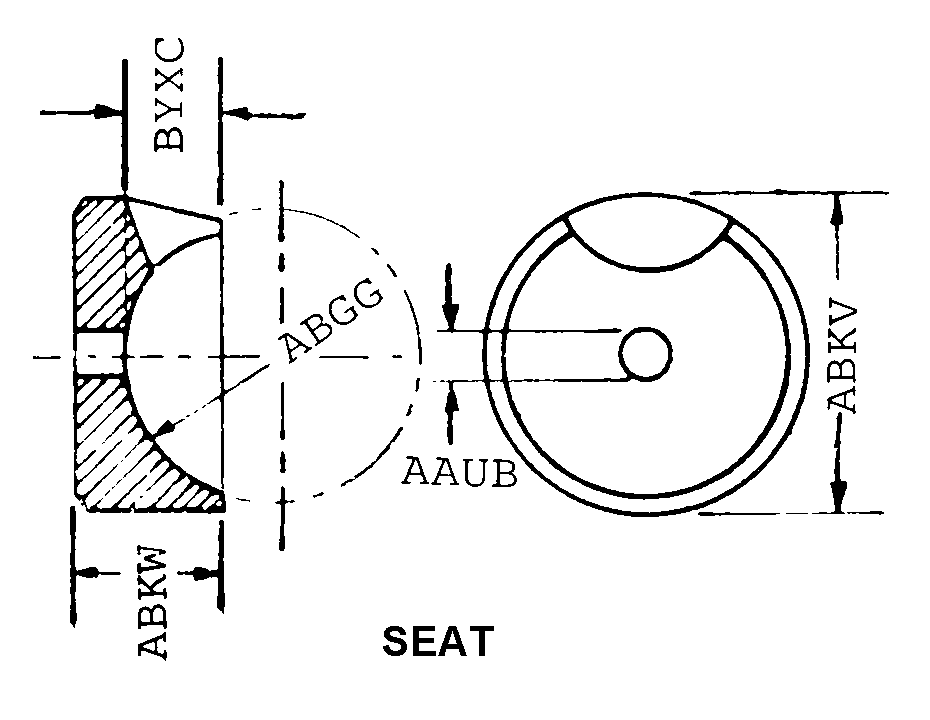

REFERENCE DRAWINGS & PICTURES
SEAT
Cross Reference | NSN 2530-00-339-1757
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2452 | 00447 | WABCO CONSTRUCTION AND MININGEQUIPMENT GROUP INDIANAPOLIS PLANT |
Technical Data | NSN 2530-00-339-1757
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | SEAT |
| RADIUS | 0.438 INCHES NOMINAL |
| BALL SEAT DEPTH | 1.285 INCHES NOMINAL |
| OUTSIDE DIAMETER | 4.700 INCHES NOMINAL |
| OVERALL HEIGHT | 1.500 INCHES NOMINAL |
| HOLE DIAMETER | 1.375 INCHES NOMINAL |
