NSN 2530-00-847-7304
Part Details | PNEUMATIC TIRE WHEEL
2530-00-847-7304 A wheel with an integral or removable rim designed to mount a pneumatic tire. Includes wheels without rims but designed to accommodate pneumatic tire rims. May include tire(s). Excludes WHEEL, LANDING GEAR.
Alternate Parts: 1000992, 100099-2, 8021, 350X6, 25570, 2530-00-847-7304, 00-847-7304, 2530008477304, 008477304
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | DEC 30, 1966 | 00-847-7304 | 17959 ( WHEEL, PNEUMATIC TIRE ) |

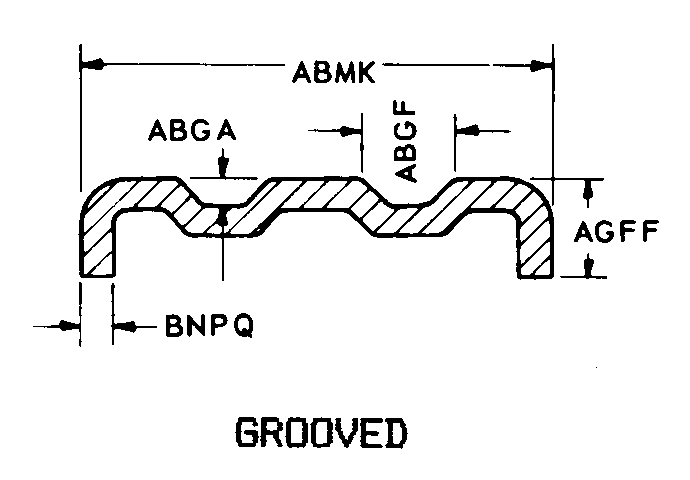

REFERENCE DRAWINGS & PICTURES
GROOVED
Cross Reference | NSN 2530-00-847-7304
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100099-2 | 56190 | METADURE PARTS & SALES, INC.DBA METADURE PARTS & SALES |
| 8021 | 90699 | UNIMASCO INC |
| 350X6 | 90699 | UNIMASCO INC |
| 25570 | 90699 | UNIMASCO INC |
Technical Data | NSN 2530-00-847-7304
| Characteristic | Specifications |
|---|---|
| TIRE RIM NOMINAL DIAMETER | 6.000 INCHES |
| TIRE | INCLUDED |
| SIZE DESIGNATOR | 3.50 |
| PLY RATING | 4 |
| DESIGN FORM | DISK |
| DISK TYPE | SINGLE |
| MOUNTING FACE TYPE | CONCAVE |
| LIGHTENING HOLE | NOT INCLUDED |
| DESIGN TYPE | INTEGRAL RIM |
| RIM STYLE | GROOVED |
| GROOVE DEPTH | 0.500 INCHES NOMINAL |
| GROOVE WIDTH | 0.375 INCHES NOMINAL |
| OVERALL WIDTH | 4.000 INCHES NOMINAL |
| FLANGE WIDTH | 0.375 INCHES NOMINAL |
| METAL THICKNESS | 0.078 INCHES NOMINAL |
| MOUNTING TYPE FOR WHICH DESIGNED | SINGLE TIRE |
| HUB CHARACTERISTIC | DEMOUNTABLE |
| HUB | NOT INCLUDED |
| MOUNTING HOLE QUANTITY | 5 |
