NSN 2540-00-184-9402
Part Details | VEHICULAR BUMPER
2540-00-184-9402 An item usually metallic, specifically designed to be mounted on the chassis and/or body of ground vehicles for protection against damage in collision with other objects. It may include mounting bracket(s) and/or hardware, such as grille guards, reinforcements, tow rings, footman loops, and the like.
Alternate Parts: 3884700, 3884700, 2540-00-184-9402, 00-184-9402, 2540001849402, 001849402
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | FEB 12, 1971 | 00-184-9402 | 21985 ( BUMPER, VEHICULAR ) |
REFERENCE DRAWINGS & PICTURES

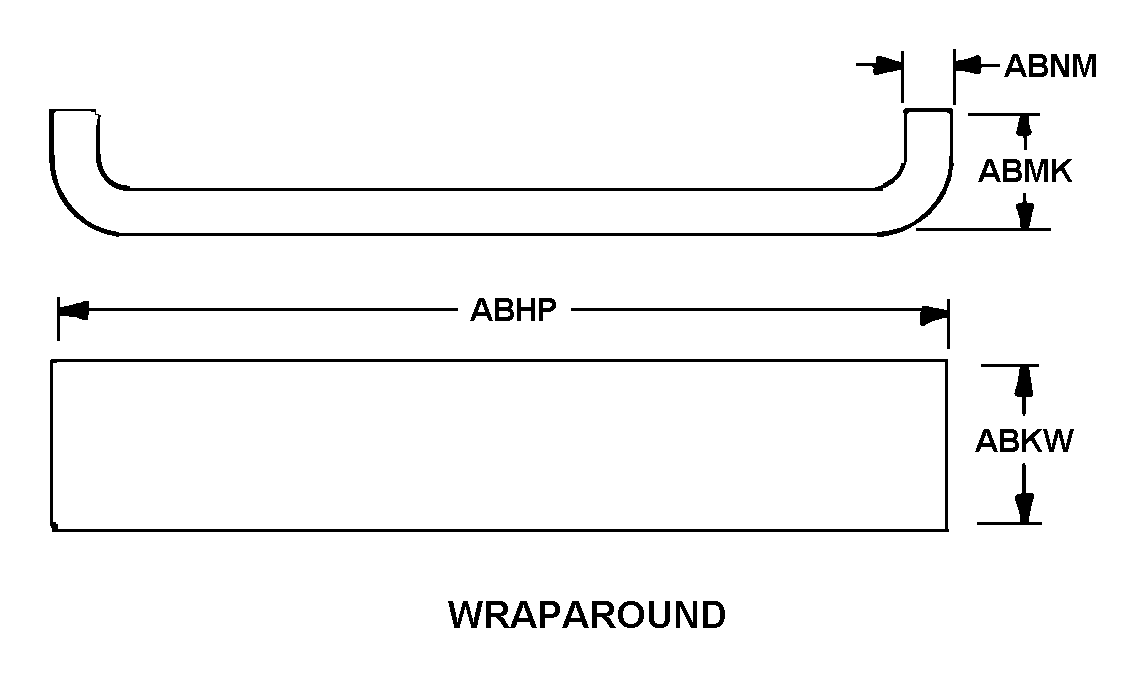

WRAPAROUND
Cross Reference | NSN 2540-00-184-9402
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3884700 | 11862 | GENERAL MOTORS CORPCHEVROLET MOTOR DIV |
| 3884700 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
Technical Data | NSN 2540-00-184-9402
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| SURFACE TREATMENT | PAINT |
| COLOR | BLACK |
| STYLE DESIGNATOR | WRAPAROUND |
| OVERALL LENGTH | 79.000 INCHES NOMINAL |
| OVERALL HEIGHT | 9.000 INCHES NOMINAL |
| OVERALL WIDTH | 8.500 INCHES NOMINAL |
| THICKNESS | 0.109 INCHES NOMINAL |
| CONSTRUCTION | ONE-PIECE |
| MOUNTING BRACKET | NOT PROVIDED |
