NSN 2540-00-352-6058
Part Details | TOW HOOK
2540-00-352-6058 A metal hook-shaped item, specifically designed to be mounted on a vehicle to facilitate attachment of a chain, rope, and/or cable for towing purposes. See also HOOK, PINTLE and PINTLE ASSEMBLY, TOWING.
Alternate Parts: 97478L, T841, T841, 2540-00-352-6058, 00-352-6058, 2540003526058, 003526058
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-352-6058 | 20165 ( HOOK, TOW ) |
REFERENCE DRAWINGS & PICTURES

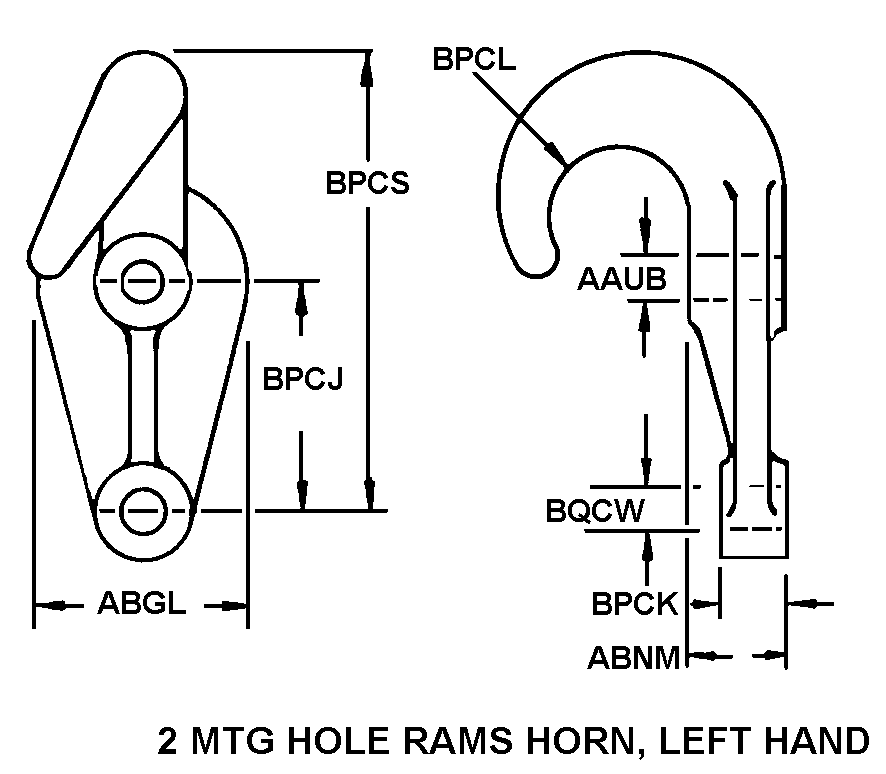

MTG HOLE RAMS HORN, LEFT HAND
Cross Reference | NSN 2540-00-352-6058
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 97478L | 23382 | FWD SEAGRAVE HOLDINGS, LP |
| T841 | 59690 | KOEHRING COLORAIN DIV |
| T841 | 8E499 | KOEHRING CRANES AND EXCAVATORS INCSUB OF NORTHWEST ENGINEERING CO |
Technical Data | NSN 2540-00-352-6058
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | MTG HOLE RAMS HORN, LEFT HAND |
| HOLE DIAMETER | 0.781 INCHES NOMINAL |
| WIDTH | 2.750 INCHES NOMINAL |
| THICKNESS | 1.500 INCHES NOMINAL |
| DISTANCE BETWEEN HOLE CENTERS | 4.188 INCHES NOMINAL |
| SMALLEST THICKNESS | 0.625 INCHES NOMINAL |
| HOOK INSIDE RADIUS | 1.188 INCHES NOMINAL |
| LENGTH FROM HOLE CENTER TO HOOK HEAD CENTER | 8.062 INCHES NOMINAL |
| BOTTOM HOLE DIAMETER | 0.656 INCHES NOMINAL |
