NSN 2540-00-410-6720
Part Details | DOOR DOVETAIL WEDGE
2540-00-410-6720 A metal item having a mounting plate and a projection which is usually v-shaped. It is designed to be mounted on a vehicle door or door post and mate with a RECEPTACLE, DOOR WEDGE. It is used to hold the door rigidly in place when closed. Excludes items having an integral catch.
Alternate Parts: DH218, 36910, 2540-00-410-6720, 00-410-6720, 2540004106720, 004106720
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 22, 1972 | 00-410-6720 | 20247 ( WEDGE, DOOR DOVETAIL ) |
REFERENCE DRAWINGS & PICTURES
DOOR WEDGE

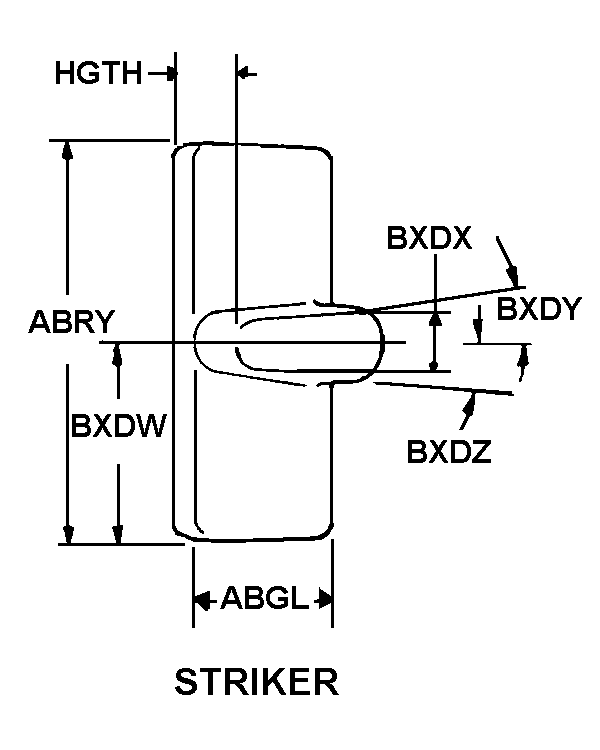

STRIKER
Cross Reference | NSN 2540-00-410-6720
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| DH218 | 70615 | AUTO CITY PRODUCTS DIV DETROITMASTER PRODUCTS CO |
| 36910 | 13841 | TIFFIN PARTS, L.L.C.DIV SUBSIDIARY OF PETTIBONE CORP. |
Technical Data | NSN 2540-00-410-6720
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | STRIKER |
| WIDTH | 1.000 INCHES MINIMUM AND 1.320 INCHES MAXIMUM |
| LENGTH | 3.000 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | DOOR WEDGE |
| HOLE DIAMETER | 0.306 INCHES NOMINAL |
