NSN 2540-00-528-4536
Part Details | DOOR HANDLE
2540-00-528-4536 A device designed to actuate the mechanism of a door latch, either by a turning or pulling of the handle, or by operation of a PUSH BUTTON or trigger, and it may be with or without an escutcheon plate. Exludes items having an integral latch. See also DOORKNOB.
Alternate Parts: 5284536, 2540-00-528-4536, 00-528-4536, 2540005284536, 005284536
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-528-4536 | 18073 ( HANDLE, DOOR ) |
REFERENCE DRAWINGS & PICTURES

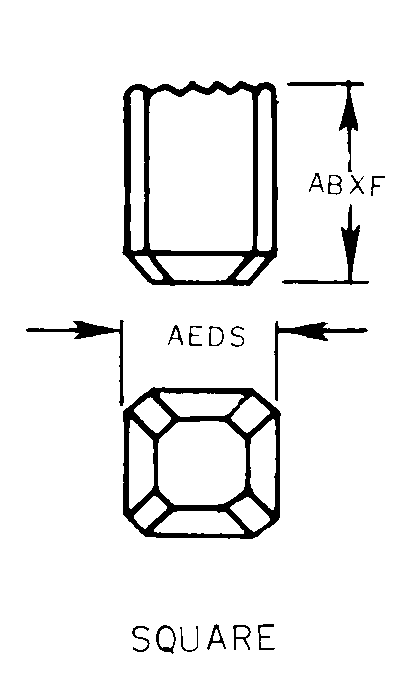

SQUARE
Cross Reference | NSN 2540-00-528-4536
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5284536 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2540-00-528-4536
| Characteristic | Specifications |
|---|---|
| HEAD DIAMETER | 1.125 INCHES NOMINAL |
| SHANK LENGTH | 0.422 INCHES NOMINAL |
| SHANK DIAMETER | 0.625 INCHES NOMINAL |
| OVERALL LENGTH | 5.062 INCHES NOMINAL |
| HANDLE HEIGHT | 2.188 INCHES NOMINAL |
| HANDLE CLEARANCE | 1.562 INCHES NOMINAL |
| INTEGRAL SHAFT STYLE | SQUARE |
| SHAFT LENGTH | 0.812 INCHES NOMINAL |
| SQUARE SHAFT WIDTH | 0.440 INCHES NOMINAL |
| FSC APPLICATION DATA | VEHICULAR ENGINE COMPARTMENT |
