NSN 2540-00-555-5100
Part Details | PINTLE HOOK LATCH
2540-00-555-5100 A metal safety device designed for securing a towing pintle lock or dog in either the open or closed position.
Alternate Parts: 152682, 152682, 2018580, 112, 3ES12507, 2018580, 110291H, 5555100, 91227, 399961, 2540-00-555-5100, 00-555-5100, 2540005555100, 005555100
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-555-5100 | 11401 ( LATCH, PINTLE HOOK ) |

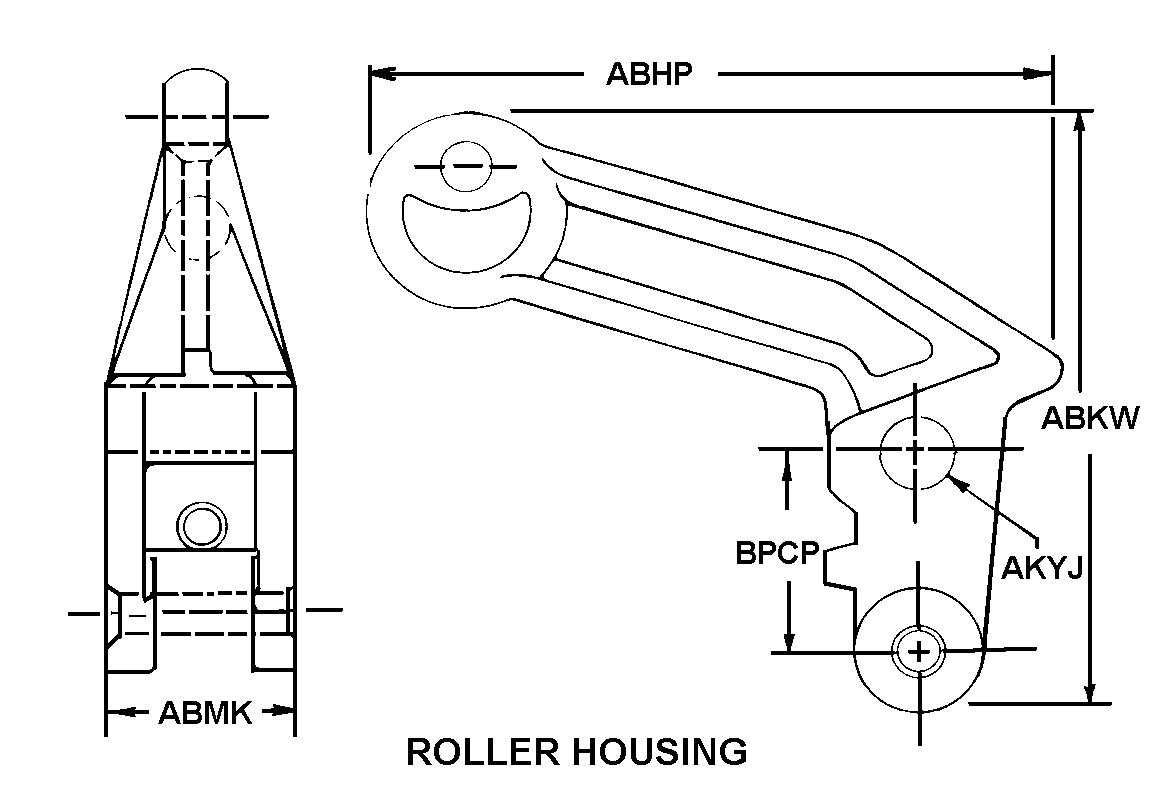

REFERENCE DRAWINGS & PICTURES
ROLLER HOUSING
Cross Reference | NSN 2540-00-555-5100
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 152682 | 08683 | BROCKWAY MOTOR TRUCKSDIV OF MACK TRUCKS INC |
| 152682 | 94519 | BRP MANUFACTURING COMPANYDBA BUCKEYE RUBBER PRODUCTS |
| 2018580 | 7X677 | GENERAL MOTORS LLCDBA GENERAL MOTORS |
| 112 | 74410 | HOLLAND USA INC |
| 3ES12507 | 78500 | MERITOR HEAVY VEHICLE SYSTEMS LLC |
| 2018580 | 23862 | MILITARY VEHICLES OPNGENERAL MOTORS TRUCK AND BUS GROUP |
| 110291H | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 5555100 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 91227 | 65282 | WHITE MOTOR CORP |
| 399961 | 65282 | WHITE MOTOR CORP |
Technical Data | NSN 2540-00-555-5100
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| PINTLE TYPE FOR WHICH DESIGNED | MANUAL |
| STYLE DESIGNATOR | ROLLER HOUSING |
| OVERALL LENGTH | 6.000 INCHES NOMINAL |
| OVERALL HEIGHT | 3.625 INCHES NOMINAL |
| OVERALL WIDTH | 3.250 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 1.016 INCHES NOMINAL |
| DISTANCE FROM PIVOT PIN HOLE CENTER TO ROLLER PIN HOLE CENTER | 3.750 INCHES NOMINAL |
| THREADED PIVOT PIN LOCKING HOLE | NOT INCLUDED |
