Part Details | PINTLE HOOK LATCH
2540-00-625-8820 A metal safety device designed for securing a towing pintle lock or dog in either the open or closed position.
Alternate Parts: 6258820, 2540-00-625-8820, 00-625-8820, 2540006258820, 006258820
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-625-8820 | 11401 ( LATCH, PINTLE HOOK ) |
REFERENCE DRAWINGS & PICTURES

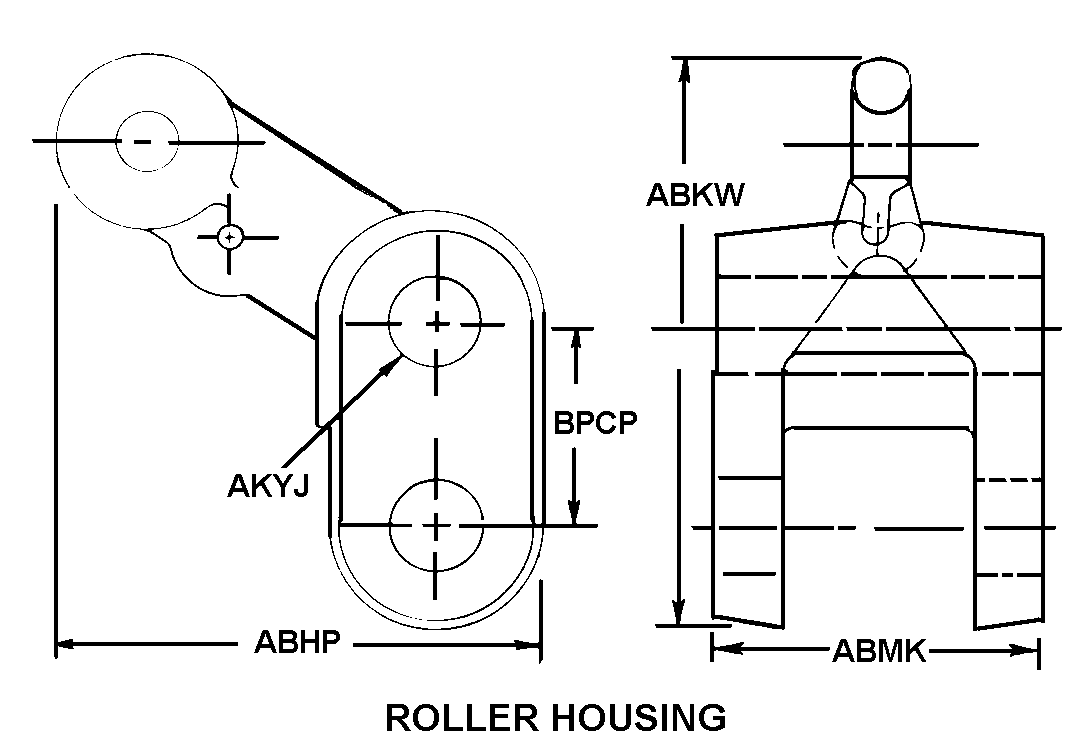

ROLLER HOUSING
Cross Reference | NSN 2540-00-625-8820
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 6258820 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2540-00-625-8820
| Characteristic | Specifications |
|---|---|
| MATERIAL | 0$DST8740$DST4140 |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-624, FS8640-CANCELED FED SPEC 1ST MATERIAL RESPONSE AND QQ-S-624, FS8740-CANCELED FED SPEC 2ND MATERIAL RESPONSE AND QQ-S-624, FS4140-CANCELED FED SPEC 3RD MATERIAL RESPONSE |
| PINTLE TYPE FOR WHICH DESIGNED | AUTOMATIC |
| STYLE DESIGNATOR | ROLLER HOUSING |
| OVERALL LENGTH | 2.500 INCHES NOMINAL |
| OVERALL HEIGHT | 4.750 INCHES NOMINAL |
| OVERALL WIDTH | 1.734 INCHES MINIMUM AND 1.766 INCHES MAXIMUM |
| PIVOT PIN HOLE DIAMETER | 0.885 INCHES MINIMUM AND 0.890 INCHES MAXIMUM |
| DISTANCE FROM PIVOT PIN HOLE CENTER TO ROLLER PIN HOLE CENTER | 1.718 INCHES MINIMUM AND 1.728 INCHES MAXIMUM |
| THREADED PIVOT PIN LOCKING HOLE | NOT INCLUDED |
