NSN 2540-00-679-8035
Part Details | TOW HOOK
2540-00-679-8035 A metal hook-shaped item, specifically designed to be mounted on a vehicle to facilitate attachment of a chain, rope, and/or cable for towing purposes. See also HOOK, PINTLE and PINTLE ASSEMBLY, TOWING.
Alternate Parts: 2540006798035, 10861607, 10861607, 2540-00-679-8035, 00-679-8035, 2540006798035, 006798035
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-679-8035 | 20165 ( HOOK, TOW ) |

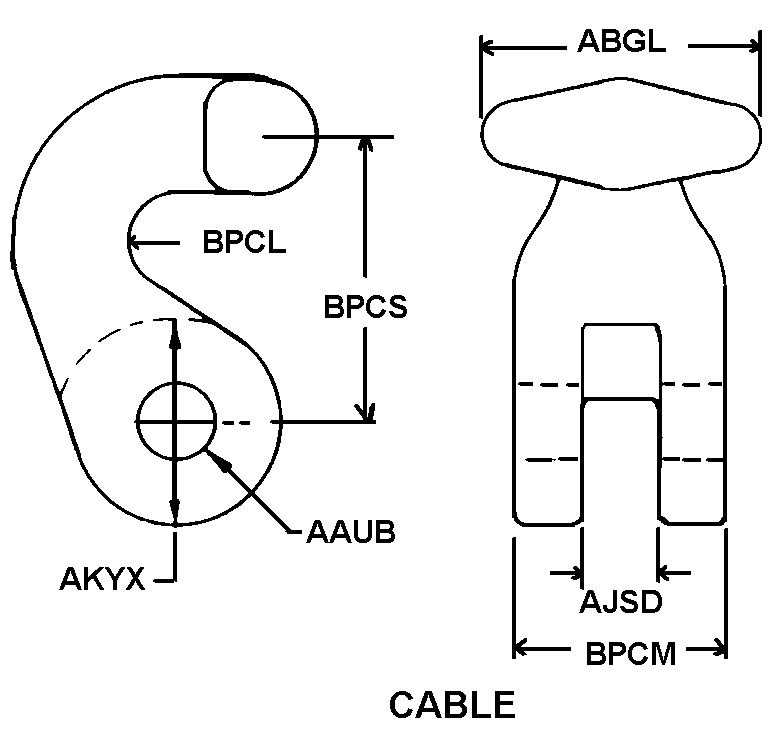

REFERENCE DRAWINGS & PICTURES
CABLE
Cross Reference | NSN 2540-00-679-8035
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2540006798035 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 10861607 | T0720 | FNSS SAVUNMA SISTEMLERI A.S. |
| 10861607 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2540-00-679-8035
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | CABLE |
| HOLE DIAMETER | 1.015 INCHES MINIMUM AND 1.047 INCHES MAXIMUM |
| WIDTH | 3.750 INCHES NOMINAL |
| FORK SPAN WIDTH | 1.546 INCHES MINIMUM AND 1.562 INCHES MAXIMUM |
| FORK DEPTH | 2.750 INCHES NOMINAL |
| HOOK INSIDE RADIUS | 0.625 INCHES MINIMUM AND 0.687 INCHES MAXIMUM |
| SMALLEST WIDTH | 3.250 INCHES NOMINAL |
| LENGTH FROM HOLE CENTER TO HOOK HEAD CENTER | 3.938 INCHES MINIMUM AND 4.125 INCHES MAXIMUM |
