NSN 2540-00-690-3836
Part Details | VEHICULAR BUMPER
2540-00-690-3836 An item usually metallic, specifically designed to be mounted on the chassis and/or body of ground vehicles for protection against damage in collision with other objects. It may include mounting bracket(s) and/or hardware, such as grille guards, reinforcements, tow rings, footman loops, and the like.
Alternate Parts: FW4166, 6903836, 2540-00-690-3836, 00-690-3836, 2540006903836, 006903836
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-690-3836 | 21985 ( BUMPER, VEHICULAR ) |

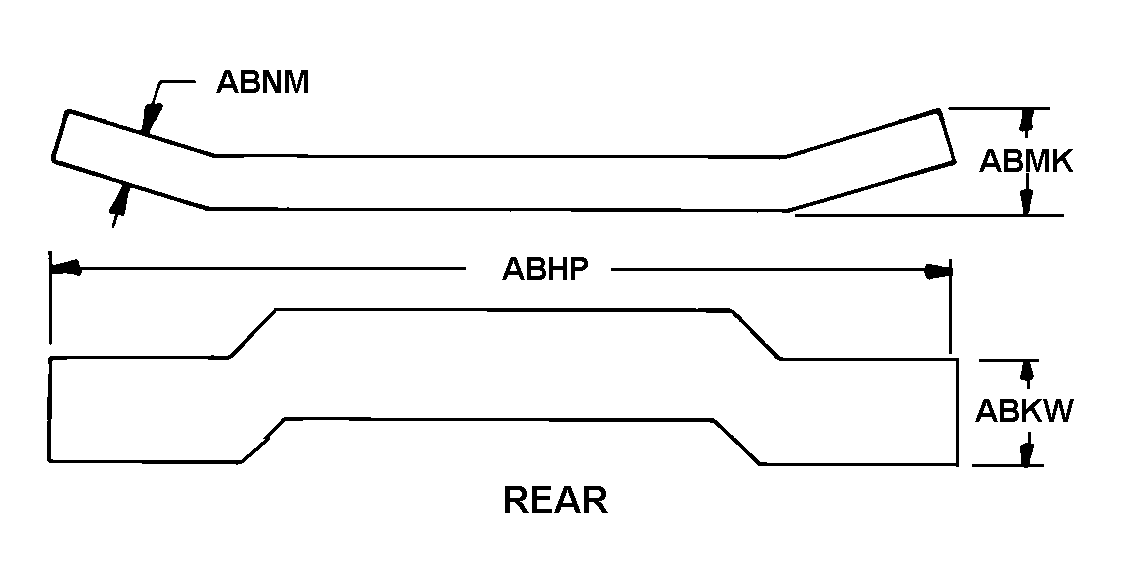

REFERENCE DRAWINGS & PICTURES
REAR
Cross Reference | NSN 2540-00-690-3836
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| FW4166 | 55396 | SMITH OTIS A MFG CO |
| 6903836 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2540-00-690-3836
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | REAR |
| OVERALL LENGTH | 68.125 INCHES NOMINAL |
| OVERALL HEIGHT | 5.813 INCHES NOMINAL |
| OVERALL WIDTH | 12.375 INCHES NOMINAL |
| THICKNESS | 2.500 INCHES NOMINAL |
| CONSTRUCTION | ONE-PIECE |
| MOUNTING BRACKET | NOT PROVIDED |
| FURNISHED ITEMS AND QUANTITY | 5 LOOP,FOOTMAN |
