NSN 2540-00-735-0156
Part Details | PINTLE HOOK LATCH
2540-00-735-0156 A metal safety device designed for securing a towing pintle lock or dog in either the open or closed position.
Alternate Parts: 951613, 7350156, 2540-00-735-0156, 00-735-0156, 2540007350156, 007350156
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1961 | 00-735-0156 | 11401 ( LATCH, PINTLE HOOK ) |
REFERENCE DRAWINGS & PICTURES

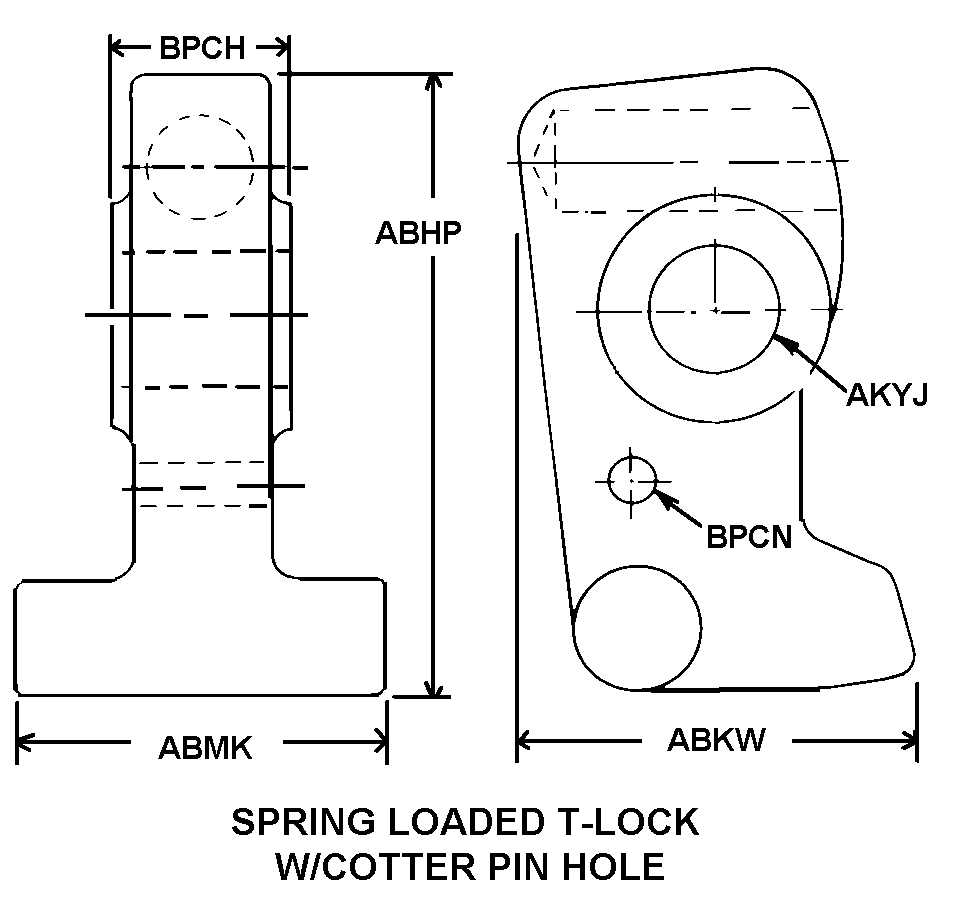

SPRING LOADED T-LOCK W/COTTER PIN HOLE
Cross Reference | NSN 2540-00-735-0156
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 951613 | 58275 | SASCO INC CANADIAN DIV |
| 7350156 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2540-00-735-0156
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1035 |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE 1035 ASSN STD SINGLE MATERIAL RESPONSE |
| PINTLE TYPE FOR WHICH DESIGNED | MANUAL |
| STYLE DESIGNATOR | SPRING LOADED T-LOCK W/COTTER PIN HOLE |
| OVERALL LENGTH | 2.250 INCHES NOMINAL |
| OVERALL HEIGHT | 1.250 INCHES NOMINAL |
| OVERALL WIDTH | 1.500 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 0.438 INCHES NOMINAL |
| WIDTH AT PIVOT PIN HOLE | 0.610 INCHES MINIMUM AND 0.620 INCHES MAXIMUM |
| LOCKING PIN HOLE DIAMETER | 0.281 INCHES NOMINAL |
| THREADED PIVOT PIN LOCKING HOLE | NOT INCLUDED |
