NSN 2540-00-752-4313
Part Details | PINTLE HOOK LATCH
2540-00-752-4313 A metal safety device designed for securing a towing pintle lock or dog in either the open or closed position.
Alternate Parts: 7524313, 1274487, 2540007524313, 801780, 7524313, T620, T62-0, 801780, 7524313, 2540-00-752-4313, 00-752-4313, 2540007524313, 007524313
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1962 | 00-752-4313 | 11401 ( LATCH, PINTLE HOOK ) |
REFERENCE DRAWINGS & PICTURES

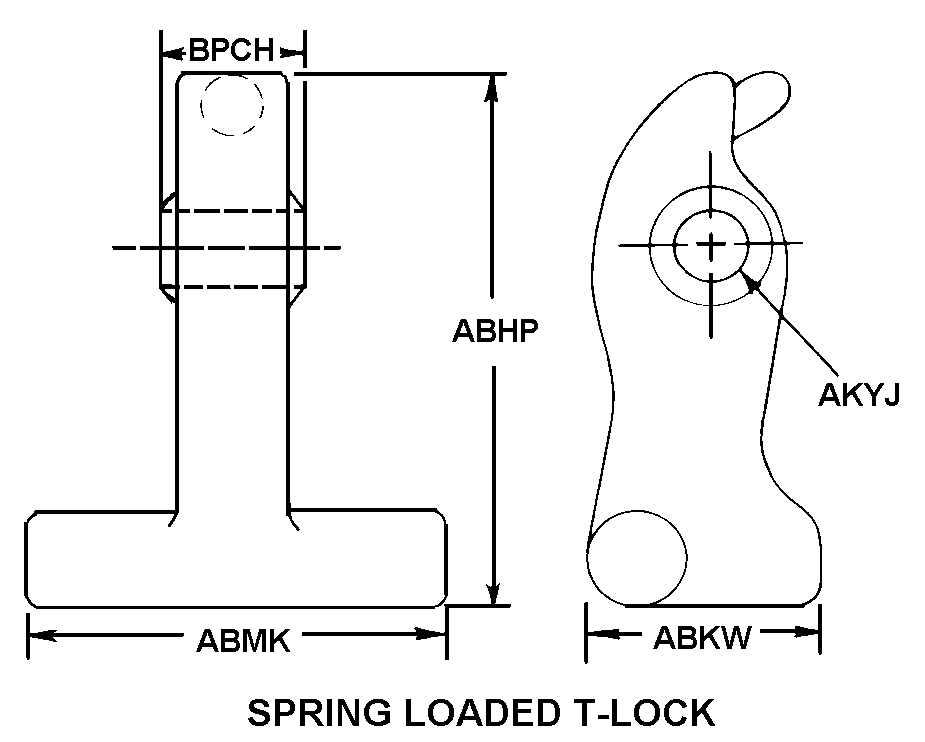

SPRING LOADED T-LOCK
Cross Reference | NSN 2540-00-752-4313
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7524313 | 12204 | DAIMLER CHRYSLER |
| 1274487 | 12204 | DAIMLER CHRYSLER |
| 2540007524313 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 801780 | 16764 | GENERAL MOTORS CORPDELCO REMY DIV |
| 7524313 | 74410 | HOLLAND USA INC |
| T62-0 | 74410 | HOLLAND USA INC |
| 801780 | 1LW55 | REMY, INC. |
| 7524313 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2540-00-752-4313
| Characteristic | Specifications |
|---|---|
| MATERIAL | 0$DST4130 |
| MATERIAL DOCUMENT AND CLASSIFICATION | FED STD 66, COMP 8630 FED STD 1ST MATERIAL RESPONSE AND FED STD 66, COMP 4130 FED STD 2ND MATERIAL RESPONSE |
| PINTLE TYPE FOR WHICH DESIGNED | MANUAL |
| STYLE DESIGNATOR | SPRING LOADED T-LOCK |
| OVERALL LENGTH | 3.094 INCHES NOMINAL |
| OVERALL HEIGHT | 1.375 INCHES NOMINAL |
| OVERALL WIDTH | 2.375 INCHES NOMINAL |
| PIVOT PIN HOLE DIAMETER | 0.498 INCHES MINIMUM AND 0.502 INCHES MAXIMUM |
| WIDTH AT PIVOT PIN HOLE | 0.687 INCHES NOMINAL |
| THREADED PIVOT PIN LOCKING HOLE | NOT INCLUDED |
