NSN 2540-00-757-1958
Part Details | WEBBING STRAP
2540-00-757-1958 A narrow strip of webbing cut to a definite length, having one or both ends processed. It is usually designed for, and may have, one or more attachments or fasteners, such as BUCKLE; LOOP, STRAP FASTENER; strap end clip; RING, DEE; Hook; and the like. Excludes STRAP, BERTH, MATTRESS RETAINING; STRAP, CHIN; safety straps; and WEBBING, TEXTILE. Do not use if a more specific item name applies.
Alternate Parts: 10904224, 2540-00-757-1958, 00-757-1958, 2540007571958, 007571958
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1960 | 00-757-1958 | 20659 ( STRAP, WEBBING ) |
REFERENCE DRAWINGS & PICTURES

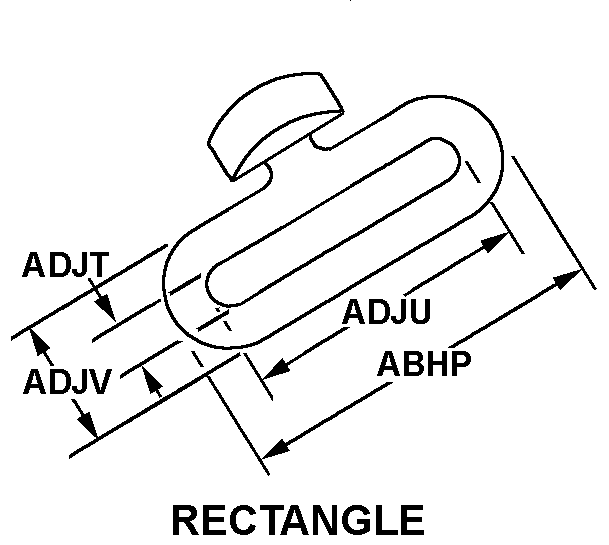

RECTANGLE
BALL CLIP
Cross Reference | NSN 2540-00-757-1958
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10904224 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2540-00-757-1958
| Characteristic | Specifications |
|---|---|
| MATERIAL | COTTON |
| WIDTH | 1.500 INCHES NOMINAL |
| LENGTH | 1.438 INCHES NOMINAL |
| END TYPE | W/ATTACHMENT |
| ENVIRONMENTAL PROTECTION | J ANY ACCEPTABLE |
| COLOR | OLIVE DRAB |
| END CLIP STYLE DESIGNATOR | BALL CLIP |
| END CLIP MATERIAL | BRASS |
| END CLIP QUANTITY | 1 |
| LOOP STYLE DESIGNATOR | RECTANGLE |
| LOOP MATERIAL | STEEL, QQ-S-633-CANCELED |
| FASTENED LOOP FEATURE | INCLUDED |
| LOOP FASTENING METHOD | SEWED |
| LOOP LOCATION | SEWED TO ONE END |
