NSN 2540-00-773-5482
Part Details | RING DRAWBAR COUPLER
2540-00-773-5482 An item having a circular shaped eye at one end for coupling to the pintle of a towing vehicle. It is designed to be mounted on the drawbar of a vehicle to be towed. See also BOLT, EYE.
Alternate Parts: A14047, 18689, 6244, 505884, 08E02050000, 3109028, MT128, 14047, TU338, 18S2331, 7735482, 2540-00-773-5482, 00-773-5482, 2540007735482, 007735482
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1962 | 00-773-5482 | 19449 ( COUPLER, DRAWBAR, RING ) |
REFERENCE DRAWINGS & PICTURES

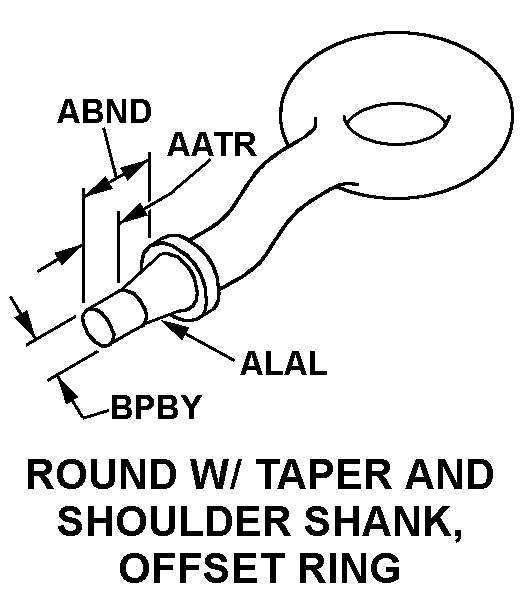

ROUND W/TAPER AND SHOULDER SHANK, OFFSET RING
Cross Reference | NSN 2540-00-773-5482
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| A14047 | 34623 | AM GENERAL LLC |
| 18689 | 11743 | CHECKER MOTORS CORPORATION |
| 6244 | 54713 | EATON CORP |
| 505884 | 23705 | FRUEHAUF CORP |
| 08E02050000 | 80244 | GENERAL SERVICES ADMINISTRATIONFEDERAL SUPPLY SERVICE |
| 3109028 | 73830 | GERSTENLAGER CO THE |
| MT128 | 26051 | GREAT AMERICAN INDUSTRIES INC |
| 14047 | 83120 | PRESSED METALS OF AMERICA INC |
| TU338 | 49200 | PROSPERITYA DIV OF AMETEK INC |
| 18S2331 | 58141 | STRICK TRAILER CO |
| 7735482 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2540-00-773-5482
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND W/TAPER AND SHOULDER SHANK, OFFSET RING |
| SHANK LENGTH | 6.250 INCHES NOMINAL |
| TAPER LENGTH | 3.938 INCHES NOMINAL |
| TAPER PER FOOT | 1.500 INCHES NOMINAL |
| RING INSIDE DIAMETER | 3.000 INCHES NOMINAL |
| RING OUTSIDE DIAMETER | 6.438 INCHES MINIMUM AND 6.562 INCHES MAXIMUM |
| SHANK END THREAD PROVISION | THREADED |
| THREAD SIZE | 1-1/8 IN. - 16 |
| SCREW THREAD SERIES DESIGNATOR | UN |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.188 INCHES |
| COTTER PIN HOLE DIAMETER | 0.203 INCHES NOMINAL |
| SHANK END KEYWAY | NOT PROVIDED |
| PAINTED FEATURE | NOT INCLUDED |
