NSN 2540-00-828-3600
Part Details | ACCESSORIES STOWAGE BOX
2540-00-828-3600 A box usually constructed of metal designed to provide protection and/or stowage of tools, spare parts, hardware, rations, flares, first aid supplies, components, and the like, in or on tanks, tractors, trailers, towed artillery, guided missile launchers, rocket launchers, shipping and storage containers, and the like. It is specifically designed as a component for, or for attachment to, designated equipment, it may be compartmented and contain securing devices for item to be stowed. It may be watertight and/or portable. It may have a separate or removable cover or lid. Excludes CASE (as modified), CHEST (as modified), SHIPPING AND STORAGE CONTAINER (as modified), and CONTAINER (as modified).
Alternate Parts: LT1123, LT1-123, 13212E3900, 2903149, 2540-00-828-3600, 00-828-3600, 2540008283600, 008283600
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | AUG 28, 1967 | 00-828-3600 | 37273 ( BOX, ACCESSORIES STOWAGE ) |
REFERENCE DRAWINGS & PICTURES

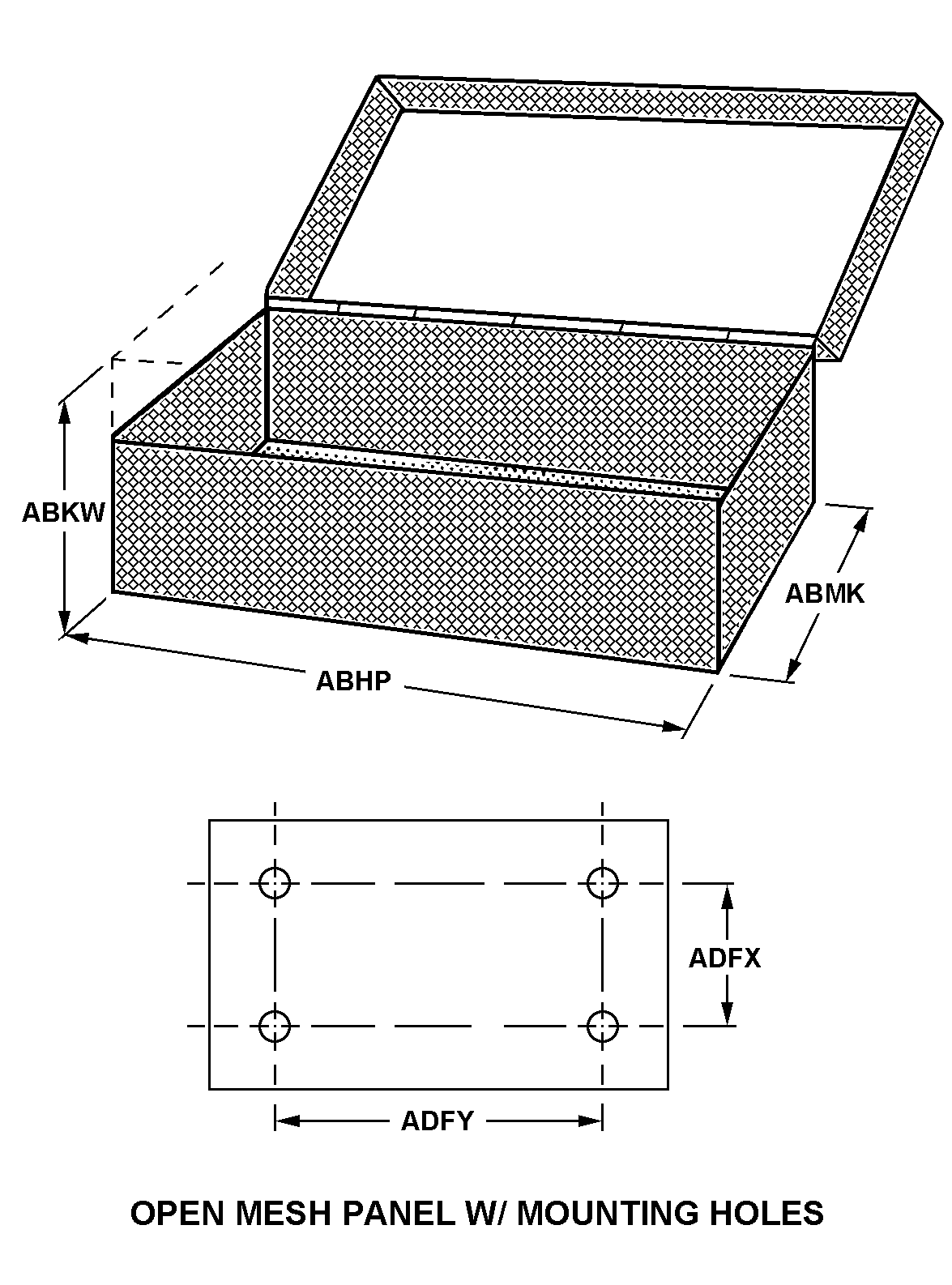

OPEN MESH PANEL W/ MOUNTING HOLES
Cross Reference | NSN 2540-00-828-3600
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| LT1-123 | 03677 | ANTHONY YORK CO |
| 13212E3900 | 97403 | CECOM LR CENTER |
| 2903149 | 12204 | DAIMLER CHRYSLER |
Technical Data | NSN 2540-00-828-3600
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| STYLE DESIGNATOR | A OPEN MESH PANEL W/ MOUNTING HOLES |
| OVERALL LENGTH | 22.720 INCHES NOMINAL |
| OVERALL WIDTH | 12.100 INCHES NOMINAL |
| OVERALL HEIGHT | 8.050 INCHES NOMINAL |
| CLOSURE METHOD | FLAPS |
| CLOSURE FASTENING TYPE | CATCH, CLAMPING |
| SPECIAL FEATURES | FOUR ATTACHED MTG BRACKETS |
