NSN 2590-00-801-2355
Part Details | HEADLIGHT BEAM SELECTING SWITCH
2590-00-801-2355 A switch actuated by an external plunger and designed to be mounted on a vehicle for the purpose of switching the headlights from high beam to low beam or vice versa. Excludes SWITCH, PUSH and SWITCH, FOOT.
Alternate Parts: 816042, 0624A0403, 20J15, 13207E2941FN29, 2590008012355, 2590006929279, 2590006625444, 10175445, 801176548, 8011765-48, 1997027, 1997027, TYPEIIGRADE1, MILS13625, 20J15, 816042, 30829, 8396186, 4164, 4164, MRL12449, 2590-00-801-2355, 00-801-2355, 2590008012355, 008012355
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 25 | JAN 01, 1963 | 00-801-2355 | 22249 ( SWITCH, BEAM SELECTING, HEADLIGHT ) |
REFERENCE DRAWINGS & PICTURES

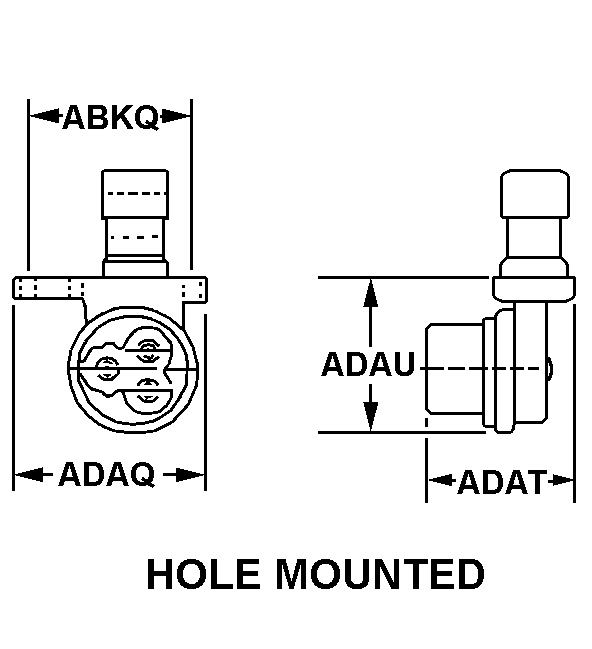

HOLE MOUNTED
ROUND
Cross Reference | NSN 2590-00-801-2355
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 816042 | 02280 | AMERICAN HOIST AND DERRICK CO |
| 0624A0403 | 55207 | ARROW-MASTER, INCORPORATED |
| 20J15 | 05643 | BARBER-GREENE CO |
| 13207E2941FN29 | 97403 | CECOM LR CENTER |
| 2590008012355 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 2590006929279 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 2590006625444 | SCY13 | E.C.A ETABLISSEMENTCENTRALD'APPROVISIONNEMENT DES |
| 10175445 | 23382 | FWD SEAGRAVE HOLDINGS, LP |
| 8011765-48 | 61465 | GARWOOD/FELLER INCGARWOOD WINCH DIV |
| 1997027 | 24617 | GENERAL MOTORS CORP |
| 1997027 | 16764 | GENERAL MOTORS CORPDELCO REMY DIV |
| TYPEIIGRADE1 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| MILS13625 | 81349 | MILITARY SPECIFICATIONSPROMULGATED BY MILITARY |
| 20J15 | 0MKW7 | MINNPAR, LLCDBA MINNPAR |
| 816042 | 49185 | TEREX AMERICAN CRANE CORP |
| 30829 | 13841 | TIFFIN PARTS, L.L.C.DIV SUBSIDIARY OF PETTIBONE CORP. |
| 8396186 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 4164 | 0ZSM8 | UCOM, INC. |
| 4164 | 81263 | UNIVERSAL COMPONENTS CORP |
| MRL12449 | 40152 | VME AMERICAS INCSUB OF VME GROUP N V |
Technical Data | NSN 2590-00-801-2355
| Characteristic | Specifications |
|---|---|
| MAXIMUM VOLTAGE RATING IN VOLTS | 28.0 DC |
| CONTACT LOAD CURRENT RATING AT MAXIMUM RATED VOLTAGE | C15.000 AMPERES RESISTIVE |
| BODY STYLE | HOLE MOUNTED |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO LENGTH | 2.510 INCHES NOMINAL |
| BODY LENGTH | 1.420 INCHES NOMINAL |
| BODY WIDTH | 2.660 INCHES MAXIMUM |
| BODY HEIGHT | 5.005 INCHES MAXIMUM |
| ACTUATOR STYLE | ROUND |
| ACTUATOR DIAMETER | 0.980 INCHES NOMINAL |
| ACTUATOR HEIGHT | 1.620 INCHES NOMINAL |
| ACTUATOR FREE POSITION HEIGHT | 1.620 INCHES NOMINAL |
| TERMINAL TYPE AND QUANTITY | 3 CONNECTOR, RECEPTACLE |
| HAZARDOUS LOCATIONS/ENVIRONMENTAL PROTECTION | WATERTIGHT |
| MOUNTING METHOD | FLANGE |
| SPECIAL FEATURES | 3 MTG HOLES,AND THE OTHER HOLE IS 1.760 IN. C TO C DISTANCE BETWEEN MTG FACILITIES PARALLEL TO THE LG |
| NONDEFINITIVE SPEC/STD DATA | 2 TYPE AND 3 ARRANGEMENT AND B CLASS AND 1 GRADE |
| END ITEM IDENTIFICATION | GRUMMAN AEROSPACE A-10 AIRCRAFT |
