NSN 2805-00-362-0523
Part Details | VALVE TAPPET ADJUSTING SCREW
2805-00-362-0523 An externally threaded screw-like device with a hexagon, square, slotted or any other type drive end. The other end may have a spherical ball, socket or other type of machined surface. It may have a concentric hole along the longitudinal centerline and a hole perpendicular to the axis joining the concentric hole for lubrication. It is specifically designed to be used as a means for adjusting engine poppet valve tappet clearances and may be furnished with a lock nut.
Alternate Parts: 21RI230, 2805-00-362-0523, 00-362-0523, 2805003620523, 003620523
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-362-0523 | 33266 ( SCREW, ADJUSTING, VALVE TAPPET ) |
REFERENCE DRAWINGS & PICTURES

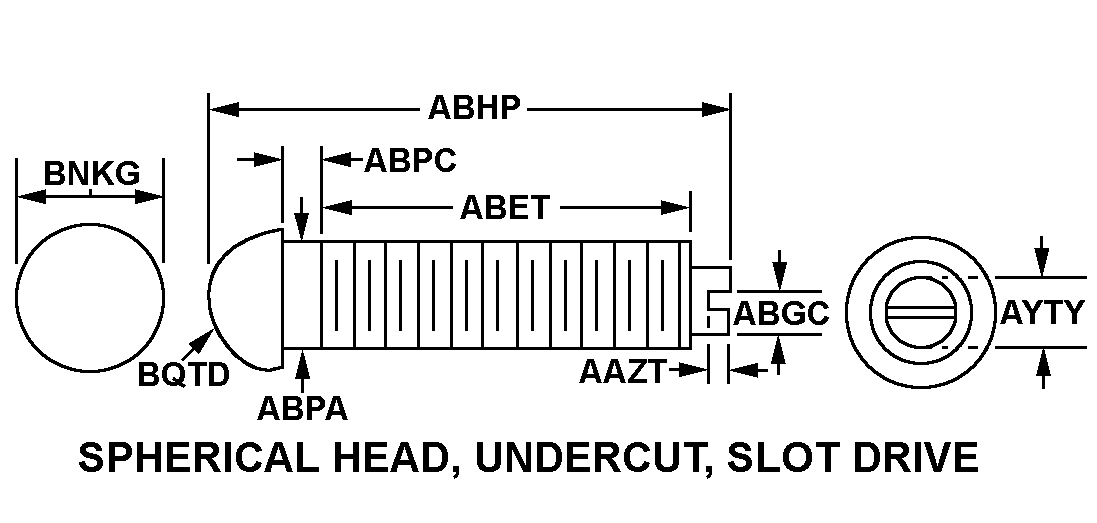

SPHERICAL HEAD, UNDERCUT, SLOT DRIVE
Cross Reference | NSN 2805-00-362-0523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 21RI230 | 02978 | L3 TECHNOLOGIES, INC.DBA COMBAT PROPULSION SYSTEMS |
Technical Data | NSN 2805-00-362-0523
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| CASEHARDENING INDICATOR | CASEHARDENED |
| STYLE DESIGNATOR | SPHERICAL HEAD, UNDERCUT, SLOT DRIVE |
| SLOT DEPTH | 0.085 INCHES NOMINAL |
| SLOT WIDTH | 0.065 INCHES NOMINAL |
| OVERALL LENGTH | 1.779 INCHES NOMINAL |
| UNDERCUT DIAMETER | 0.360 INCHES NOMINAL |
| UNDERCUT WIDTH | 0.093 INCHES NOMINAL |
| SMALLEST DIAMETER | 0.156 INCHES NOMINAL |
| END LARGEST DIAMETER | 0.625 INCHES NOMINAL |
| END SPHERICAL RADIUS | 0.312 INCHES NOMINAL |
| THREAD LENGTH | 1.188 INCHES |
| THREAD SIZE | 0.375.24 |
| THREAD SERIES | UNF |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
