NSN 2805-00-401-9521
Part Details | INTERNAL COMBUSTION ENGINE PISTON
2805-00-401-9521
Alternate Parts: 1861PX20, 1595P020, 8035P+20, 949P+20, A1224P+20, 449T20, 222021R11, 133770R21, 133770R2, 222021R21, 222021R11, 133770R21, 133770R2, 8035P+20, 1861PX+20, L101F+20, 2805-00-401-9521, 00-401-9521, 2805004019521, 004019521
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | APR 01, 1970 | 00-401-9521 | 16509 ( PISTON, INTERNAL COMBUSTION ENGINE ) |
REFERENCE DRAWINGS & PICTURES
HUMP

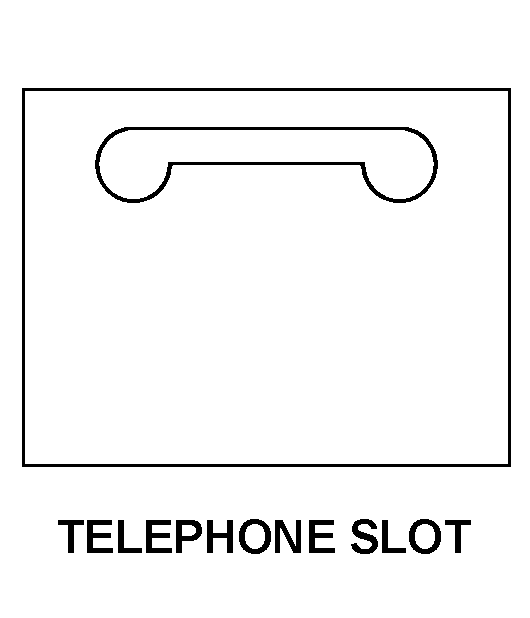

TELEPHONE SLOT
Cross Reference | NSN 2805-00-401-9521
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1861PX20 | 45225 | BOSCH AUTOMOTIVE SERVICE SOLUTIONSINC. |
| 1595P020 | 77220 | DANA CORPENGINE PRODUCTS DIV |
| 8035P+20 | 92947 | ERTEL MFG CORP |
| 949P+20 | 01212 | FEDERAL-MOGUL CORPGOVERNMENT SALES DEPT |
| A1224P+20 | 83087 | GOULD INCINDUSTRIAL MARKETING DIV |
| 449T20 | 79975 | M & S CARTAGE INC |
| 222021R11 | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| 133770R21 | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| 133770R2 | 31007 | NAVISTAR INTERNATIONAL CORPORATIONDBA NAVISTAR |
| 222021R21 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 222021R11 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 133770R21 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 133770R2 | 89346 | NAVISTAR INTL CORP TRUCK BR OHIOPLANT |
| 8035P+20 | 44370 | NYLEN PRODUCTS INC |
| 1861PX+20 | 53781 | SPX CORP |
| L101F+20 | 98349 | TRW INC TRW STEERING AND SUSPENSIONDIV |
Technical Data | NSN 2805-00-401-9521
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| DIAMETER | 4.520 INCHES NOMINAL |
| OVERALL HEIGHT | 4.750 INCHES NOMINAL |
| SURFACE FINISH | FINISHED |
| FINISHED SIZE DESIGNATION | OVERSIZE |
| OVERSIZE | 0.020 INCHES NOMINAL |
| WEIGHT | 44.0 OUNCES |
| HEAD STYLE | 0 HUMP |
| SKIRT TYPE | SOLID |
| SKIRT BOTTOM CUTAWAY FEATURE | INCLUDED |
| CUT DEPTH | 0.460 INCHES NOMINAL |
| SKIRT SLOT STYLE | TELEPHONE SLOT |
| RING GROOVE QUANTITY | 3 |
| RING GROOVE WIDTH | 0.0940 INCHES AND 0.0940 INCHES AND 0.1880 INCHES |
| OIL PASSAGE TYPE | HOLE |
| CARBON GROOVE | NOT INCLUDED |
| OIL GROOVE | INCLUDED |
| DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP | 2.845 INCHES NOMINAL |
| PIN HOLE BUSHING | NOT INCLUDED |
| PINHOLE DIAMETER | 1.3100 INCHES NOMINAL |
| DISTANCE BETWEEN PIN BOSSES | 1.650 INCHES NOMINAL |
| RETAINING RING GROOVE | INCLUDED |
| PIN | INCLUDED |
| PIN TYPE FOR WHICH DESIGNED | FLOATING |
| RING | NOT INCLUDED |
