NSN 2805-00-540-5299

Part Details | INTERNAL COMBUSTION ENGINE PISTON

2805-00-540-5299

Alternate Parts: 1632109, 220455AS040, 1632109, 001820044, 00182004-4, 220455AS040, F162A4171E040, F162A04171E40, DB213SP40, 2805-00-540-5299, 00-540-5299, 2805005405299, 005405299

Supply Group (FSG) NSN Assigned NIIN Item Name Code (INC)
28JAN 01, 196300-540-529916509 ( PISTON, INTERNAL COMBUSTION ENGINE )
REFERENCE DRAWINGS & PICTURES

FLAT

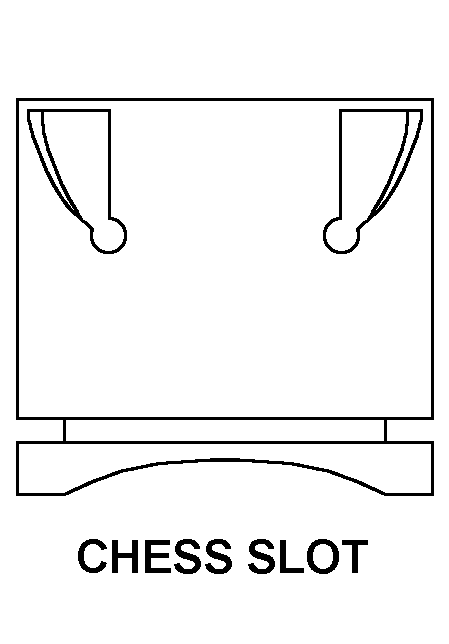

CHESS SLOT

Cross Reference | NSN 2805-00-540-5299
Part Number Cage Code Manufacturer
163210993334ATWOOD FENCE COMPANY, INC.
220455AS0401ML14BRINKLEY TECHNOLOGY GROUP, LLCDBA HERCULES ENGINE COMPONENTS
163210912204DAIMLER CHRYSLER
00182004-464104DRESSER, INC.DIV DRESSER WAUKESHA
220455AS04028265HERCULES ENGINE CO INC
F162A4171E04014351TELEDYNE CONTINENTAL MOTORSINDUSTRIAL PRODUCTS DIV
F162A04171E4014351TELEDYNE CONTINENTAL MOTORSINDUSTRIAL PRODUCTS DIV
DB213SP4066289WISCONSIN MOTORS LLC
Technical Data | NSN 2805-00-540-5299
Characteristic Specifications
MATERIAL ALUMINUM ALLOY
DIAMETER3.478 INCHES NOMINAL
OVERALL HEIGHT3.500 INCHES NOMINAL
SURFACE FINISH FINISHED
FINISHED SIZE DESIGNATION OVERSIZE
OVERSIZE0.040 INCHES NOMINAL
SURFACE TREATMENT TIN
WEIGHT17.0 OUNCES
HEAD STYLE FLAT
SKIRT TYPE SOLID
SKIRT BOTTOM CUTAWAY FEATURE NOT INCLUDED
SKIRT SLOT STYLE CHESS SLOT
RING GROOVE QUANTITY4
RING GROOVE WIDTH0.0970 INCHES AND 0.0979 INCHES AND 0.1570 INCHES AND 0.1576 INCHES
RING GROOVE DIAMETER3.085 INCHES AND 3.085 INCHES AND 3.085 INCHES
OIL PASSAGE TYPE HOLE
CARBON GROOVE NOT INCLUDED
OIL GROOVE NOT INCLUDED
DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP2.000 INCHES NOMINAL
PIN HOLE BUSHING NOT INCLUDED
PINHOLE DIAMETER0.8596 INCHES NOMINAL
DISTANCE BETWEEN PIN BOSSES1.380 INCHES NOMINAL
RETAINING RING GROOVE INCLUDED
PIN INCLUDED
PIN TYPE FOR WHICH DESIGNED FLOATING
RING NOT INCLUDED
FSC APPLICATION DATAENGINE,GASOLINE,RECIPROCATING
