NSN 2810-00-306-6616
Part Details | VALVE STEM GUIDE
2810-00-306-6616 A replaceable cylindrical item designed to provide wear surface and maintain alignment of a reciprocating valve stem and the like, it may have a flange(s) and/or grooves.
Alternate Parts: AS18630P5, 18630P5, 18630P5, 2810-00-306-6616, 00-306-6616, 2810003066616, 003066616
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-306-6616 | 32562 ( GUIDE, VALVE STEM ) |
REFERENCE DRAWINGS & PICTURES

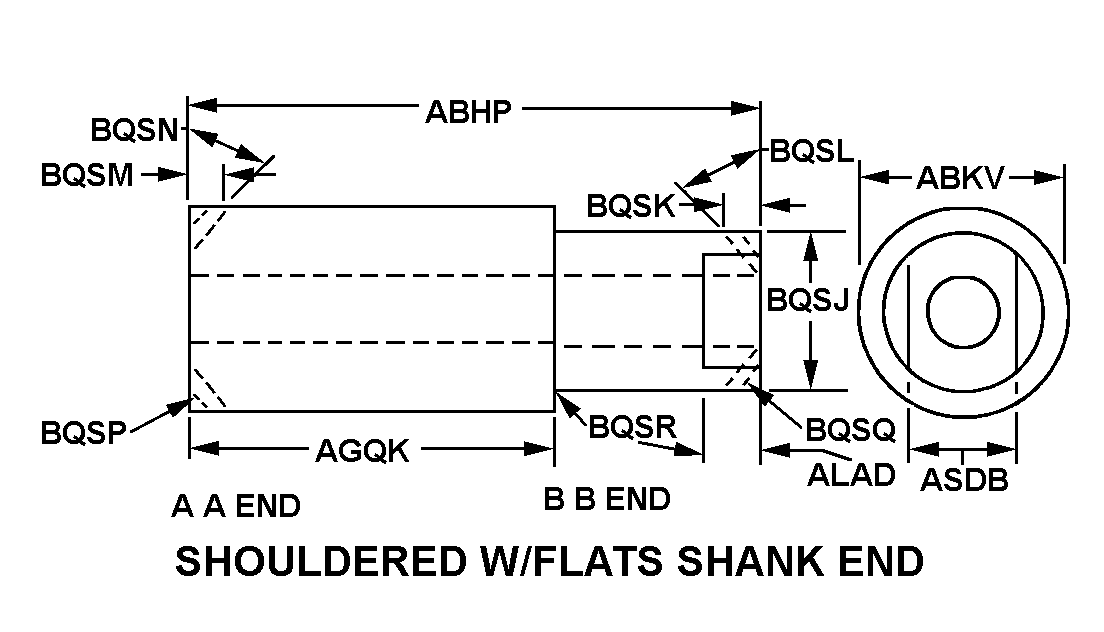

SHOULDERED W/FLATS SHANK END
Cross Reference | NSN 2810-00-306-6616
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| AS18630P5 | 12776 | AIRCRAFT SUPPLIES |
| 18630P5 | 00198 | PRATT & WHITNEY CANADA CIE DIVPRATT& WHITNEY CANADA CORP. |
| 18630P5 | 77445 | UNITED TECHNOLOGIES CORPORATIONDBA PRATT WHITNEY-SPARE PARTS |
Technical Data | NSN 2810-00-306-6616
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | SHOULDERED W/FLATS SHANK END |
| OVERALL LENGTH | 4.903 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.250 INCHES NOMINAL |
| MAJOR DIAMETER LENGTH | 4.406 INCHES NOMINAL |
| FLATS LENGTH | 1.171 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.197 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |
| BB END SHANK DIAMETER | 1.062 INCHES NOMINAL |
| BB END CHAMFER ANGLE IN DEG | 45.0 |
| SHOULDER FIRST FILLET RADIUS | 0.050 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| BORE DIAMETER | 0.9060 INCHES NOMINAL |
| BORE COUNTERSINK | NOT INCLUDED |
| MATERIAL | ALUMINUM |
| BORE COUNTERBORE | NOT INCLUDED |
| SPECIAL FEATURES | IRREGULARLY SHAPED LIP AT AA END |
| FSC APPLICATION DATA | ACFT ENG R1830 |
