NSN 2815-00-150-1490
Part Details | ENGINE POPPET VALVE TAPPET
2815-00-150-1490 A cylindrically shaped metal item designed to transmit intermittent motion from the cam lobe on a shaft or cam ring, to the engine poppet valve. It may be mechanically or hydraulically operating, and may include adjusting devices.
Alternate Parts: 9L9630, IPD9L9630, 2815-00-150-1490, 00-150-1490, 2815001501490, 001501490
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | OCT 10, 1971 | 00-150-1490 | 22199 ( TAPPET, ENGINE POPPET VALVE ) |

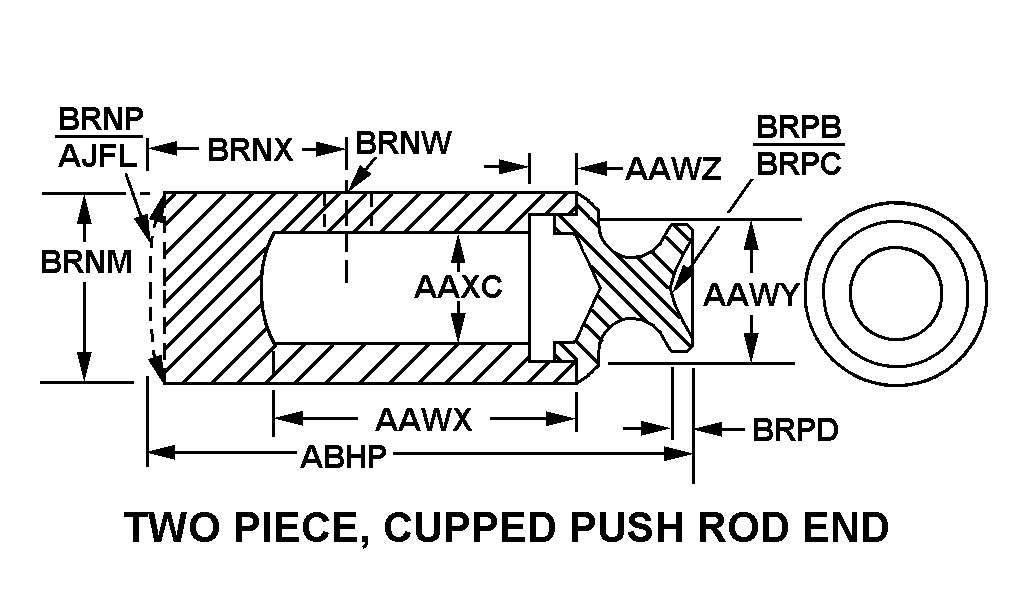

REFERENCE DRAWINGS & PICTURES
TWP PIECE, CUPPED PUSH ROD END
Cross Reference | NSN 2815-00-150-1490
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9L9630 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
| IPD9L9630 | 55883 | INDUSTRIAL PARTS DEPOT, LLCDBA IPD |
Technical Data | NSN 2815-00-150-1490
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | MECHANICAL |
| MATERIAL AND LOCATION | STEEL OVERALL |
| CASEHARDENING INDICATOR | CASEHARDENED |
| CASEHARDENED LOCATION | OVERALL |
| STYLE DESIGNATOR | TWP PIECE, CUPPED PUSH ROD END |
| OVERALL LENGTH | 2.126 INCHES NOMINAL |
| CAM END DIAMETER | 1.160 INCHES NOMINAL |
| CUP SPHERICAL RADIUS | 0.250 INCHES NOMINAL |
| CUP DEPTH | 0.375 INCHES NOMINAL |
| ADJUSTABILITY | NONADJUSTABLE |
| SIZE DESIGNATION | STANDARD |
