NSN 2815-00-214-3872
Part Details | ENGINE POPPET VALVE
2815-00-214-3872 A mushroom or tulip-shaped item having a circular head with a conical face and an extended stem used to regulate the flow of incoming fuel-air mixture or air into the combustion chamber or exhaust gases from the combustion chamber of a reciprocating internal combustion engine.
Alternate Parts: 81082AS, 80214B, 1, 81082AS, 80214B, 2815-00-214-3872, 00-214-3872, 2815002143872, 002143872
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1961 | 00-214-3872 | 15884 ( VALVE, POPPET, ENGINE ) |
REFERENCE DRAWINGS & PICTURES

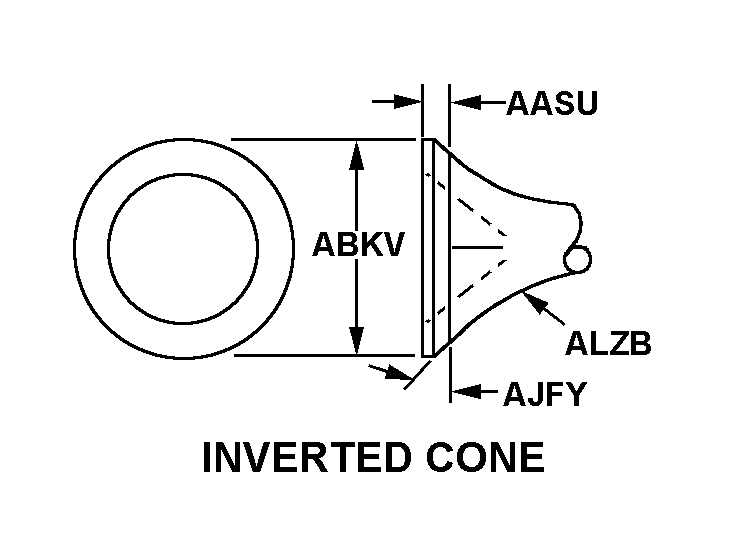

INVERTED CONE
PLAIN
Cross Reference | NSN 2815-00-214-3872
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 81082AS | 1ML14 | BRINKLEY TECHNOLOGY GROUP, LLCDBA HERCULES ENGINE COMPONENTS |
| 80214B | 1ML14 | BRINKLEY TECHNOLOGY GROUP, LLCDBA HERCULES ENGINE COMPONENTS |
| 1 | 92856 | EATON CORPENGINE COMPONENTS DIV |
| 81082AS | 28265 | HERCULES ENGINE CO INC |
| 80214B | 28265 | HERCULES ENGINE CO INC |
Technical Data | NSN 2815-00-214-3872
| Characteristic | Specifications |
|---|---|
| MATERIAL AND LOCATION | STEEL OVERALL |
| HEAD STYLE | INVERTED CONE |
| HEAD HEIGHT | 0.2500 INCHES NOMINAL |
| OUTSIDE DIAMETER | 1.6250 INCHES NOMINAL |
| STEM STYLE | PLAIN |
| CHAMFER LENGTH | 0.4380 INCHES NOMINAL |
| STEM LENGTH | 5.5000 INCHES NOMINAL |
| THREAD DIRECTION | RIGHT-HAND |
| SPECIAL FEATURES | FURNISHED W/SEAL,W/KEEPER |
