NSN 2815-00-244-0535
Part Details | ENGINE POPPET VALVE TAPPET
2815-00-244-0535 A cylindrically shaped metal item designed to transmit intermittent motion from the cam lobe on a shaft or cam ring, to the engine poppet valve. It may be mechanically or hydraulically operating, and may include adjusting devices.
Alternate Parts: 3S9736, 2815-00-244-0535, 00-244-0535, 2815002440535, 002440535
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | DEC 28, 1971 | 00-244-0535 | 22199 ( TAPPET, ENGINE POPPET VALVE ) |
REFERENCE DRAWINGS & PICTURES

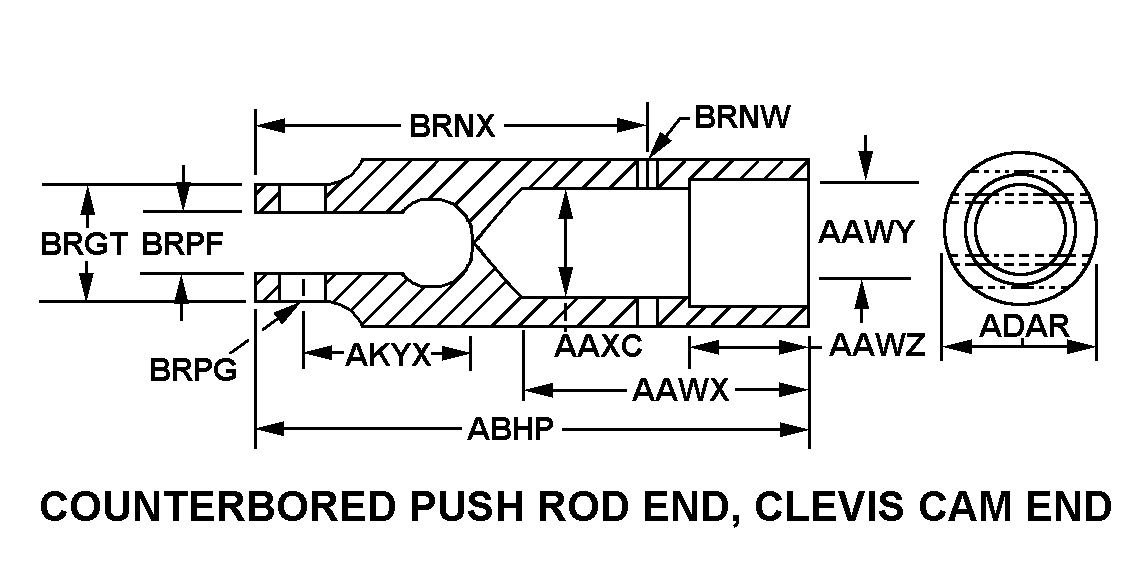

COUNTERBORED PUSH ROD END, CLEVIS CAM END
Cross Reference | NSN 2815-00-244-0535
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3S9736 | 11083 | CATERPILLAR INC.DBA CATERPILLAR |
Technical Data | NSN 2815-00-244-0535
| Characteristic | Specifications |
|---|---|
| OPERATION METHOD | MECHANICAL |
| MATERIAL AND LOCATION | ALUMINUM ALLOY OVERALL |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| STYLE DESIGNATOR | COUNTERBORED PUSH ROD END, CLEVIS CAM END |
| CONCENTRIC HOLE DEPTH | 1.045 INCHES NOMINAL |
| COUNTERBORE DIAMETER | 0.995 INCHES NOMINAL |
| COUNTERBORE DEPTH | 0.184 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.870 INCHES NOMINAL |
| OVERALL LENGTH | 2.062 INCHES NOMINAL |
| BODY OUTSIDE DIAMETER | 1.122 INCHES NOMINAL |
| FORK DEPTH | 0.290 INCHES NOMINAL |
| FORK HEIGHT | 1.000 INCHES NOMINAL |
| BODY HOLE DIAMETER | 0.125 INCHES NOMINAL |
| DISTANCE FROM BODY HOLE CENTER TO CAM END | 1.125 INCHES NOMINAL |
| FORK SLOT WIDTH | 0.512 INCHES NOMINAL |
| FORK HOLE DIAMETER | 0.390 INCHES NOMINAL |
| ADJUSTABILITY | NONADJUSTABLE |
| SIZE DESIGNATION | STANDARD |
