NSN 2815-00-300-3726
Part Details | DIRT AND LIQUID DEFLECTOR
2815-00-300-3726 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.
Alternate Parts: 4425, 4425, 2815-00-300-3726, 00-300-3726, 2815003003726, 003003726
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1961 | 00-300-3726 | 10255 ( DEFLECTOR, DIRT AND LIQUID ) |
REFERENCE DRAWINGS & PICTURES

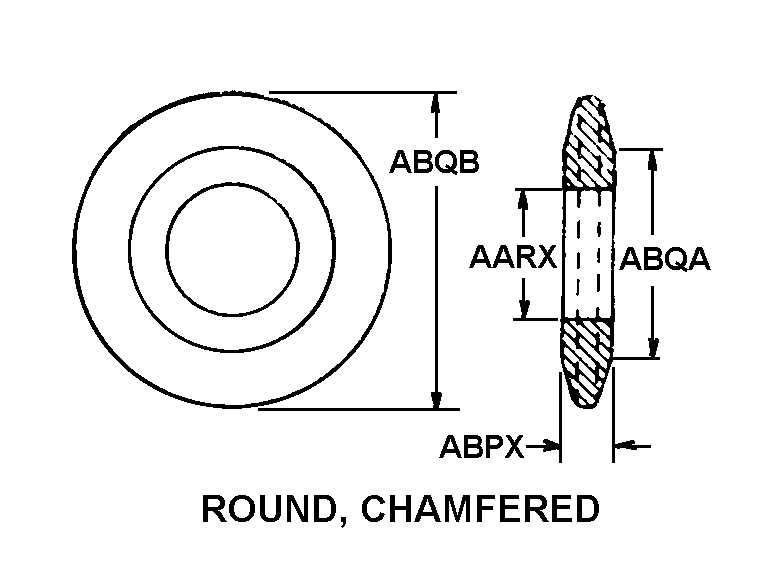

ROUND, CHAMFERED
Cross Reference | NSN 2815-00-300-3726
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4425 | 2A533 | DYE AND ASSOCIATES |
| 4425 | 54641 | LEAR SIEGLER INCSHERWOOD DIV |
Technical Data | NSN 2815-00-300-3726
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND, CHAMFERED |
| INSIDE DIAMETER | 0.844 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.188 INCHES NOMINAL |
| TAPER MINOR DIAMETER | 0.844 INCHES NOMINAL |
| TAPER MAJOR DIAMETER | 1.500 INCHES NOMINAL |
| MATERIAL | RUBBER |
| OZONE RESISTANCE | NOT OZONE RESISTANT |
