NSN 2815-00-366-2923
Part Details | DIRT AND LIQUID DEFLECTOR
2815-00-366-2923 An item so shaped as to deflect one or more of the following: dust, dirt, grease, oil, or liquid into a desired direction or away from a particular area. Can be attached to a stationary or with a revolving part. May or may not be a mechanical device.
Alternate Parts: 8075041PC8031949, 8031949, 8075044PC8031949, 8075042PC8031949, 8031949, 8031949, 2815-00-366-2923, 00-366-2923, 2815003662923, 003662923
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1961 | 00-366-2923 | 10255 ( DEFLECTOR, DIRT AND LIQUID ) |
REFERENCE DRAWINGS & PICTURES

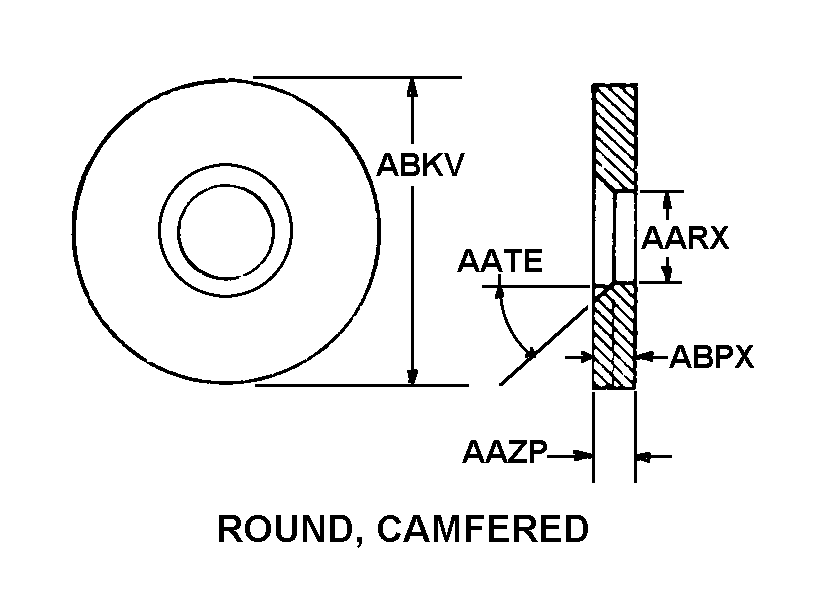

ROUND, CAMFERED
Cross Reference | NSN 2815-00-366-2923
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8075041PC8031949 | 24617 | GENERAL MOTORS CORP |
| 8031949 | 24617 | GENERAL MOTORS CORP |
| 8075044PC8031949 | 24617 | GENERAL MOTORS CORP |
| 8075042PC8031949 | 24617 | GENERAL MOTORS CORP |
| 8031949 | 72915 | GENERAL MOTORS CORPELECTRO-MOTIVE DIV |
| 8031949 | 39VG9 | PROGRESS RAIL LOCOMOTIVE INC.DBA EMD |
Technical Data | NSN 2815-00-366-2923
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | ROUND, CAMFERED |
| INSIDE DIAMETER | 13.750 INCHES NOMINAL |
| CHAMFER ANGLE IN DEG | 45.0 |
| CHAMFER LENGTH | 0.125 INCHES NOMINAL |
| OUTSIDE DIAMETER | 18.500 INCHES NOMINAL |
| MATERIAL THICKNESS | 0.188 INCHES NOMINAL |
| MATERIAL | STEEL |
| MOUNTING HOLE TYPE | PLAIN |
| MOUNTING HOLE QUANTITY | 8 |
| MOUNTING HOLE DIAMETER | 0.375 INCHES NOMINAL |
| BOLT CIRCLE DIAMETER | 14.500 INCHES NOMINAL |
