NSN 2815-00-393-5235
Part Details | PISTON CONNECTING ROD
2815-00-393-5235 A device used for connecting a piston to a crankshaft or to a master connecting rod of an internal combustion engine, steam reciprocating engine, reciprocating air compressor, or the like. The rod may be connected directly to the piston, or it may transmit the motion through a crosshead.
Alternate Parts: 1FS42, 1FS4-2, FSBA4PC124T0712141718, FSBA4PC1-2-4T07-12-14-17-18, 2815-00-393-5235, 00-393-5235, 2815003935235, 003935235
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | JAN 01, 1963 | 00-393-5235 | 60266 ( CONNECTING ROD, PISTON ) |
REFERENCE DRAWINGS & PICTURES
I-SECTION TYPE
4 BOLT ROD

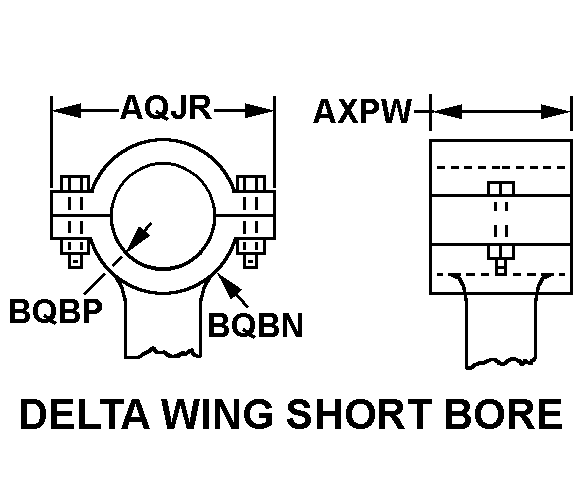

DELTA WING SHORT BORE
Cross Reference | NSN 2815-00-393-5235
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1FS4-2 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
| FSBA4PC1-2-4T07-12-14-17-18 | 14541 | GE OIL & GAS COMPRESSION SYSTEMS,LLC |
Technical Data | NSN 2815-00-393-5235
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FABRICATION METHOD | J ANY ACCEPTABLE |
| CENTER TO CENTER EFFECTIVE LENGTH | 21.312 INCHES NOMINAL |
| BODY WIDTH AT PISTON CONNECTING END | 2.547 INCHES NOMINAL |
| BODY WIDTH AT SHAFT CONNECTING END | 3.047 INCHES NOMINAL |
| BODY THICKNESS AT PISTON CONNECTING END | 2.016 INCHES NOMINAL |
| BODY THICKNESS AT SHAFT CONNECTING END | 3.891 INCHES NOMINAL |
| PISTON END CONNECTION STYLE | DELTA WING SHORT BORE |
| END WIDTH | 4.000 INCHES NOMINAL |
| END THICKNESS | 3.125 INCHES NOMINAL |
| EDGE RADIUS | 1.781 INCHES NOMINAL |
| END HOLE INSIDE DIAMETER | 2.000 INCHES NOMINAL |
| PISTON CONNECTING END BEARING | NOT INCLUDED |
| BEARING REPLACEABILITY | REPLACEABLE |
| PISTON CONNECTING END LUBRICATION DRILL FEATURE | INCLUDED |
| PISTON CONNECTING END LUBRICATION METHOD | FULL FORCED-FEED |
| SHAFT CONNECTING END STYLE | 4 BOLT ROD |
| SHAFT CONNECTING END HOLE INSIDE DIAMETER | 5.937 INCHES NOMINAL |
| SHAFT CONNECTING END EDGE RADIUS | 3.375 INCHES NOMINAL |
| SHAFT CONNECTING END WIDTH | 7.750 INCHES NOMINAL |
| SHAFT CONNECTING END THICKNESS | 3.812 INCHES NOMINAL |
| SHAFT CONNECTING END BEARING | NOT INCLUDED |
| SHAFT CONNECTING END LUBRICATION DRILL FEATURE | INCLUDED |
| SHAFT CONNECTING END LUBRICATION METHOD | FULL FORCED-FEED |
| CROSS-SECTIONAL SHAPE STYLE | I-SECTION TYPE |
