NSN 2815-00-427-0551
Part Details | INTERNAL COMBUSTION ENGINE PISTON
2815-00-427-0551
Alternate Parts: 6552161, 655216-1, 116839431, 11683943-1, 116839431, 11683943-1, 116839431, 11683943-1, 116839431, 11683943-1, 11683943, 2815-00-427-0551, 00-427-0551, 2815004270551, 004270551
| Supply Group (FSG) | NSN Assigned | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 28 | MAY 08, 1974 | 00-427-0551 | 16509 ( PISTON, INTERNAL COMBUSTION ENGINE ) |
REFERENCE DRAWINGS & PICTURES

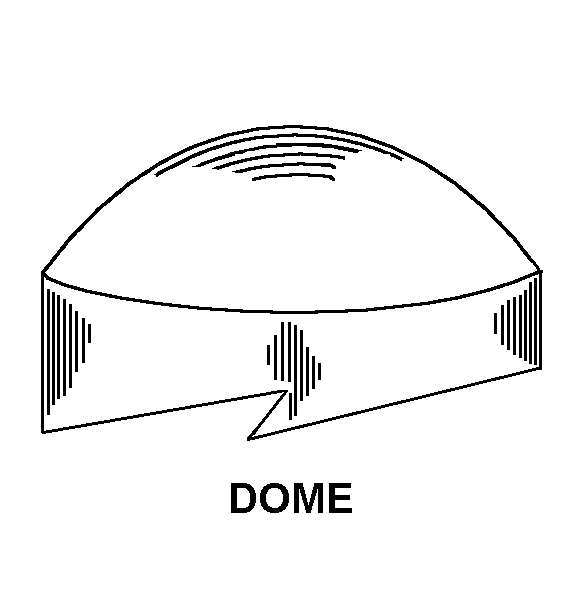

DOME
Cross Reference | NSN 2815-00-427-0551
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 655216-1 | 02978 | L3 TECHNOLOGIES, INC.DBA COMBAT PROPULSION SYSTEMS |
| 11683943-1 | 02978 | L3 TECHNOLOGIES, INC.DBA COMBAT PROPULSION SYSTEMS |
| 11683943-1 | 6R738 | MACTEK INDUSTRIES CORP |
| 11683943-1 | 32842 | MINOWITZ MANUFACTURING CO. |
| 11683943-1 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
| 11683943 | 19207 | U S ARMY TANK AUTOMOTIVE COMMANDAMSTA-IM-MM |
Technical Data | NSN 2815-00-427-0551
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| DIAMETER | 5.695 INCHES MINIMUM AND 5.703 INCHES MAXIMUM |
| OVERALL HEIGHT | 6.870 INCHES NOMINAL |
| SURFACE FINISH | FINISHED |
| FINISHED SIZE DESIGNATION | OVERSIZE |
| OVERSIZE | 0.010 INCHES NOMINAL |
| WEIGHT | 126.3 OUNCES |
| HEAD STYLE | DOME |
| SKIRT TYPE | SEMISPLIT |
| SKIRT BOTTOM CUTAWAY FEATURE | INCLUDED |
| CUT DEPTH | 5.120 INCHES NOMINAL |
| RING GROOVE QUANTITY | 4 |
| GROOVE TAPER ANGLE | 7 DEGREE 20 MINUTES PLUS 10 MINUTES |
| CARBON GROOVE | NOT INCLUDED |
| OIL GROOVE | NOT INCLUDED |
| DISTANCE FROM PIN HOLE CENTER TO EXTREME TOP | 4.750 INCHES NOMINAL |
| PIN HOLE BUSHING | NOT INCLUDED |
| PINHOLE DIAMETER | 2.1268 INCHES MINIMUM AND 2.1270 INCHES MAXIMUM |
| RETAINING RING GROOVE | NOT INCLUDED |
| PIN | NOT INCLUDED |
| PIN TYPE FOR WHICH DESIGNED | FLOATING |
| RING | NOT INCLUDED |
